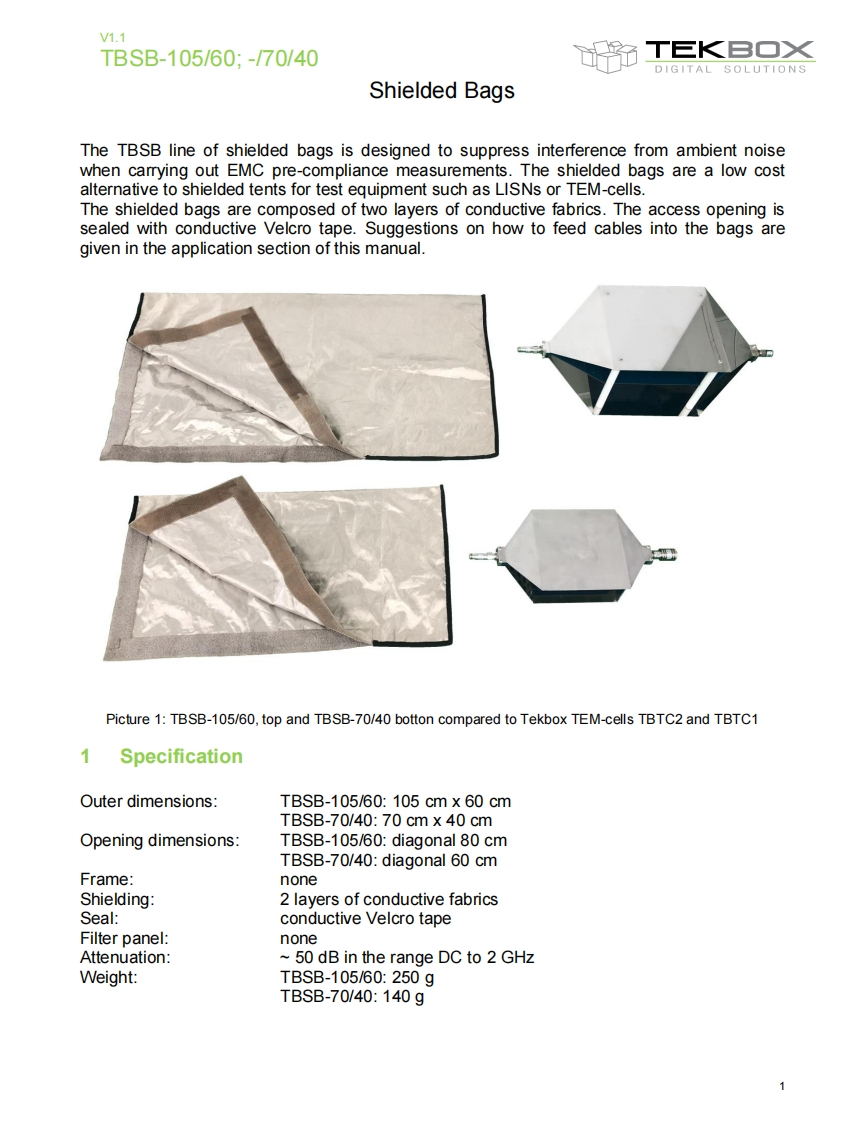

V1.1TBSB-105/60;-/70/40RT巨KB▣XDIGITAL SOLUTIONSShielded BagsThe TBSB line of shielded bags is designed to suppress interference from ambient noisewhen carrying out EMC pre-compliance measurements.The shielded bags are a low costalternative to shielded tents for test equipment such as LISNs or TEM-cells.The shielded bags are composed of two layers of conductive fabrics.The access opening issealed with conductive Velcro tape.Suggestions on how to feed cables into the bags aregiven in the application section of this manual.Picture 1:TBSB-105/60,top and TBSB-70/40 botton compared to Tekbox TEM-cells TBTC2 and TBTC11SpecificationOuter dimensions:TBSB-105/60:105cm×60cmTBSB-70/40:70 cm x 40 cmOpening dimensions:TBSB-105/60:diagonal 80 cmTBSB-70/40:diagonal 60 cmFrame:noneShielding:2 layers of conductive fabricsSeal:conductive Velcro tapeFilter panel:noneAttenuation:~50 dB in the range DC to 2 GHzWeight:TBSB-105/60:250gTBSB-70/40:140g1
