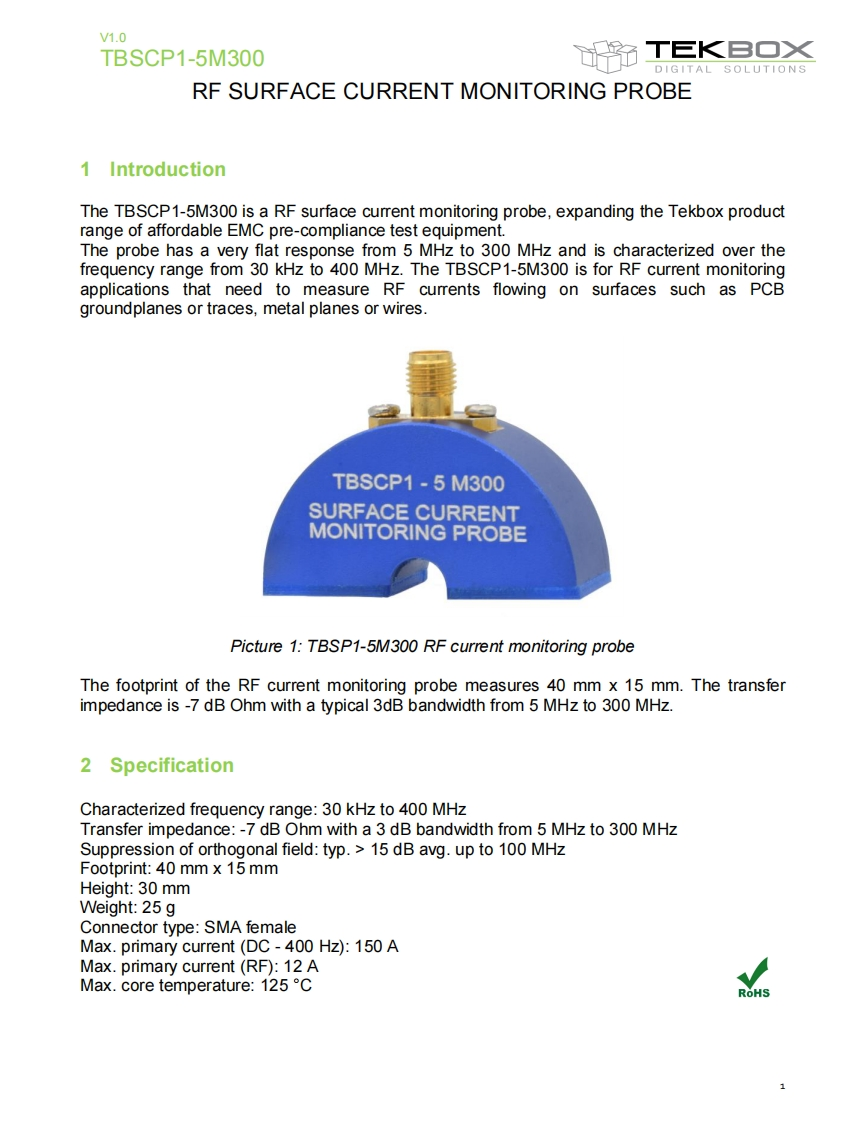

V1.0TBSCP1-5M300T三K旦口×DIGITAL SOLUTIONSRF SURFACE CURRENT MONITORING PROBE1 IntroductionThe TBSCP1-5M300 is a RF surface current monitoring probe,expanding the Tekbox productrange of affordable EMC pre-compliance test equipment.The probe has a very flat response from 5 MHz to 300 MHz and is characterized over thefrequency range from 30 kHz to 400 MHz.The TBSCP1-5M300 is for RF current monitoringapplications that need to measure RF currents flowing on surfaces such as PCBgroundplanes or traces,metal planes or wires.TBSCP1-5 M300SURFACE CURRENTMONITORING PROBEPicture 1:TBSP1-5M300 RF current monitoring probeThe footprint of the RF current monitoring probe measures 40 mm x 15 mm.The transferimpedance is-7 dB Ohm with a typical 3dB bandwidth from 5 MHz to 300 MHz.2 SpecificationCharacterized frequency range:30 kHz to 400 MHzTransfer impedance:-7 dB Ohm with a 3 dB bandwidth from 5 MHz to 300 MHzSuppression of orthogonal field:typ.15 dB avg.up to 100 MHzFootprint:40 mm x 15 mmHeight:30 mmWeight:25 gConnector type:SMA femaleMax.primary current(DC -400 Hz):150 AMax.primary current(RF):12 AMax.core temperature:125 CRoHS1
