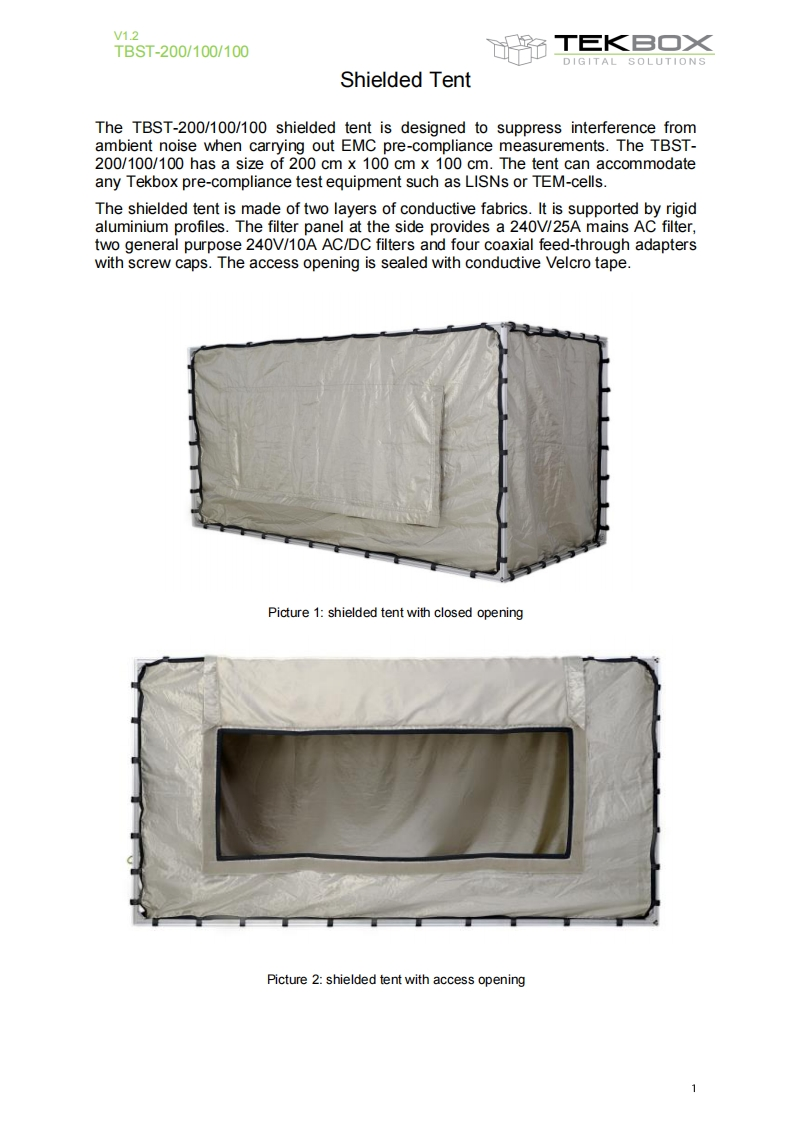

V12TBST-200/100/100TEKB▣XDIGITAL SOLUTIONSShielded TentThe TBST-200/100/100 shielded tent is designed to suppress interference fromambient noise when carrying out EMC pre-compliance measurements.The TBST-200/100/100 has a size of 200 cm x 100 cm x 100 cm.The tent can accommodateany Tekbox pre-compliance test equipment such as LISNs or TEM-cells.The shielded tent is made of two layers of conductive fabrics.It is supported by rigidaluminium profiles.The filter panel at the side provides a 240V/25A mains AC filter,two general purpose 240V/10A AC/DC filters and four coaxial feed-through adapterswith screw caps.The access opening is sealed with conductive Velcro tape.Picture 1:shielded tent with closed openingPicture 2:shielded tent with access opening1
