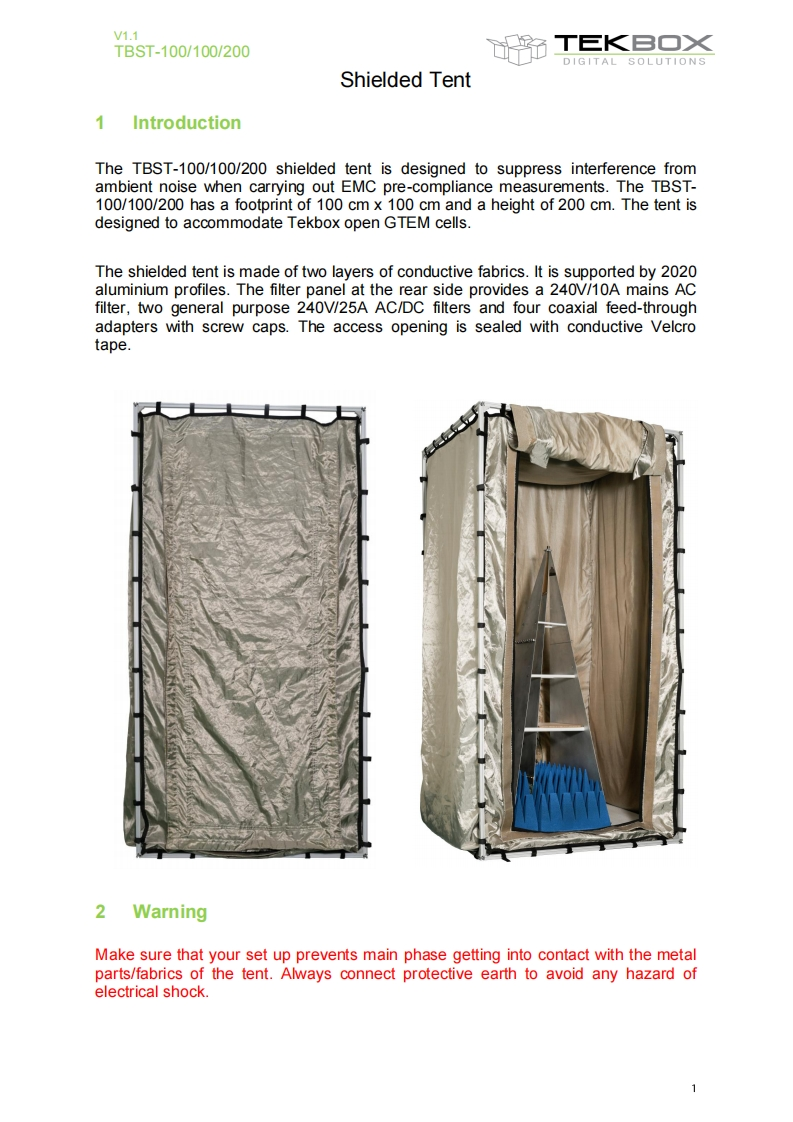

V1.1TBST-100/100/200TEK旦o×DIGITAL SOLUTIONSShielded Tent1 IntroductionThe TBST-100/100/200 shielded tent is designed to suppress interference fromambient noise when carrying out EMC pre-compliance measurements.The TBST-100/100/200 has a footprint of 100 cm x 100 cm and a height of 200 cm.The tent isdesigned to accommodate Tekbox open GTEM cells.The shielded tent is made of two layers of conductive fabrics.It is supported by 2020aluminium profiles.The filter panel at the rear side provides a 240V/10A mains ACfilter,two general purpose 240V/25A AC/DC filters and four coaxial feed-throughadapters with screw caps.The access opening is sealed with conductive Velcrotape.2 WarningMake sure that your set up prevents main phase getting into contact with the metalparts/fabrics of the tent.Always connect protective earth to avoid any hazard ofelectrical shock.1
