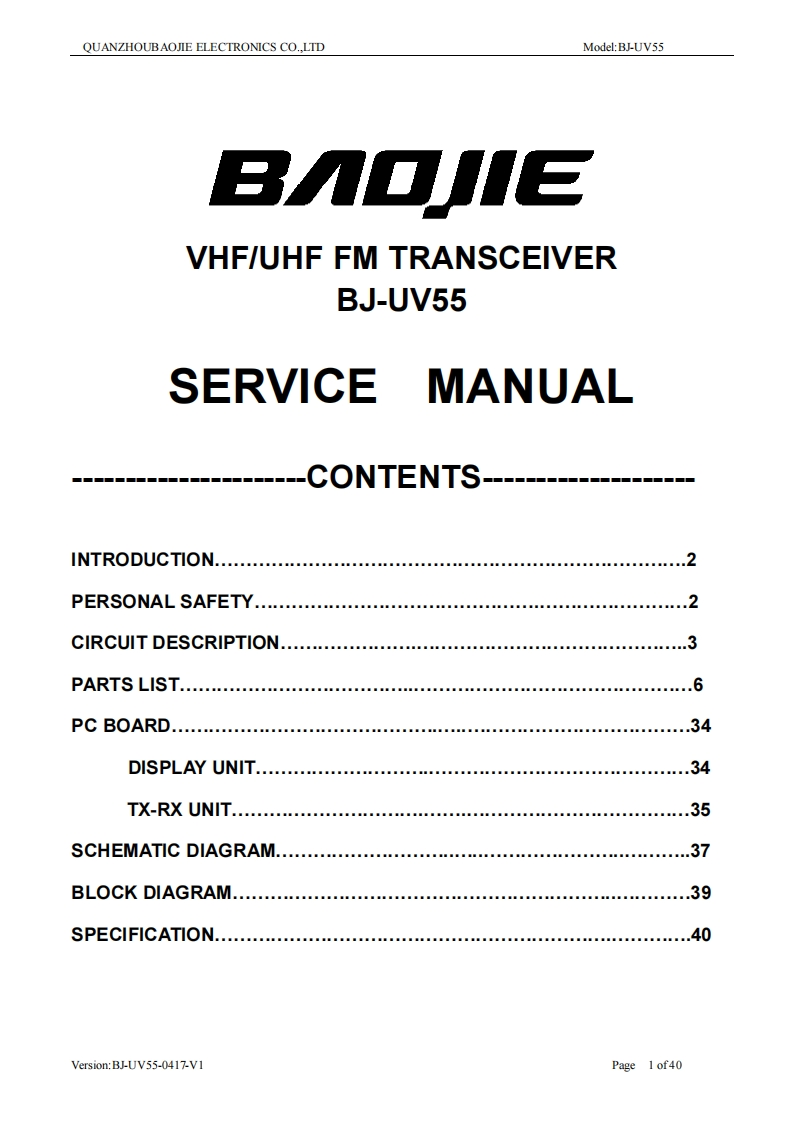

QUANZHOUBAOJIE ELECTRONICS CO.,LTDModel:BJ-UV55BA口1EVHF/UHF FM TRANSCEIVERBJ-UV55SERVICEMANUALCONTENTSINTRODUCTION.....2PERSONAL SAFETY......2CIRCUIT DESCRIPTION.....3PARTS LIST............6PC BOARD..34DISPLAY UNIT........34TX-RX UNIT...............35SCHEMATIC DIAGRAM........37BLOCK DIAGRAM.......39SPECIFICATION.......40Version:BJ-UV55-0417-V1Page 1 of40
