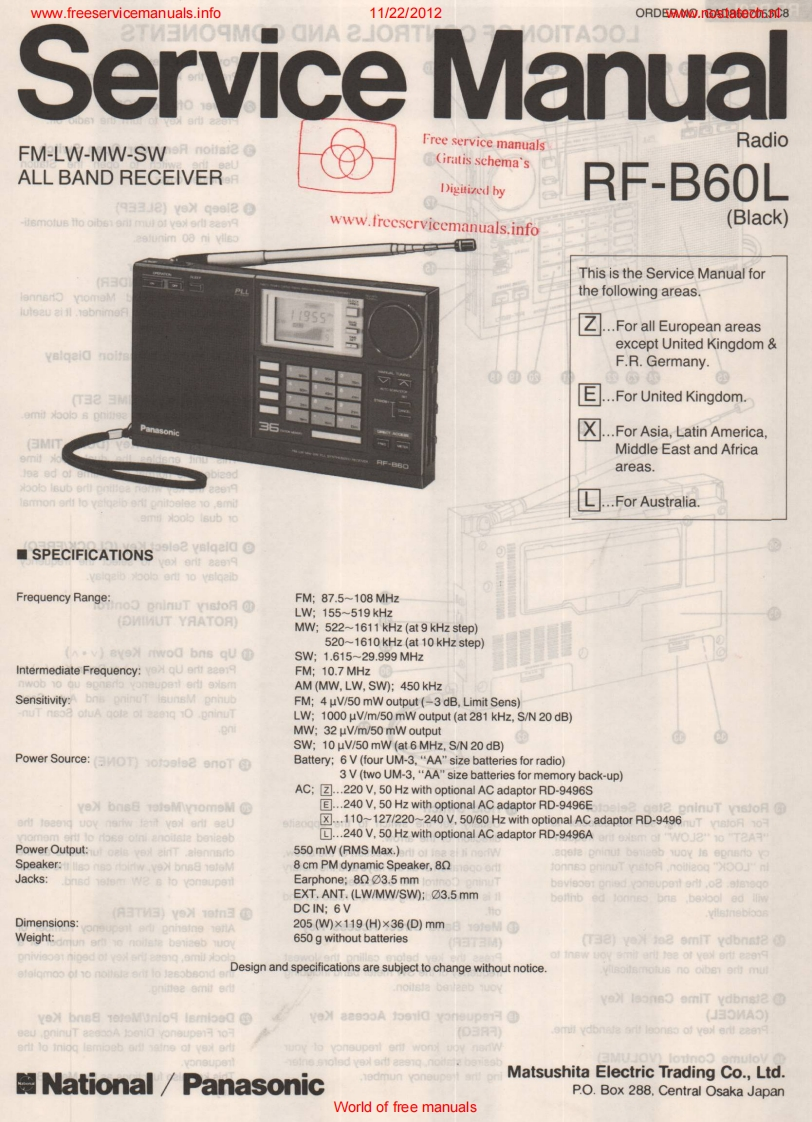

www.freeservicemanuals.info11/22/2012ORDEA.nosatect63t82TM3MO9M■aMA21OHServiceManualFM-LW-MW-SWR oeFree service manualsRadio(iratis schema'sALL BAND RECEIVERDigitized byRF-B60L9331e)oXq99120www.freeservicemanuals.info(Black)This is the Service Manual for3@the following areasZ...For all European areasexcept United Kingdomvalgeid nolfF.R.Germany.T323目.For United Kingdom.XFor Asia,Latin AmericaMiddle East and Africaareas.99For Australiaoolo lsub 1o■SPECIFICATIONSsle2 vslgela OFrequency Range:noo pninuT visto月0FM:87.5-108MHzLW:155~519kHzOMINUT YAATOR)MW;522~1611 kHz (at 9 kHz step)520~1610 kHz (at 10 kHz step)SW:1.615-29.999MHzIntermediate Frequency:QUrFM;10.7 MHzAM (MW.LW,SW):450 kHzSensitivity:FM:4 uV/50 mW output(-3 dB,Limit Sens)uA gole of 0 pninuTLW:1000 uV/m/50 mW output (at 281 kHz,S/N 20 dB)MW:32 uV/m/50 mW outputSW:10 uV/50 mW (at 6 MHz,S/N 20 dB)Power Source:GMOT)otoele2 onoTBattery:6V(four UM-3."AA"size batteries for radio)3 V(two UM-3,"AA"size batteries for memory back-up)AC:Z]...220 V,50 Hz with optional AC adaptor RD-9496SYeN bnsE ToleMyomoME...240 V,50 Hz with optional AC adaptor RD-9496EoninuT vislo月now位vo erlt9eUX110-127/220~240 V,50/60 Hz with optional AC adaptor RD-9496L...240 V,50 Hz with optional AC adaptor RD-9496APower Output:550 mW(RMS Max.)Speaker:8 cm PM dynamic Speaker,80Jacks:Earphone:80 23.5 mmEXT.ANT.(LW/MW/SW);03.5 mm月日Th3)VeX1an3@DC IN:6VDimensions:205(WM×119(H)×36(D)mm91eM①Weight:650 g without batteriesEeee2 emiT vdbna时2Design and specifications are subject to change without notice.Va别ls3 ns emIT ydbn2ve)bns8 Tel9MUnloq lsmiosdYeN aasooA tooid voneups03RNational /PanasonicMatsushita Electric Trading Co.,Ltd.P.O.Box 288.Central Osaka JapanWorld of free manuals
