Panasonic_RF-B65D_维修维护电器原理图手册

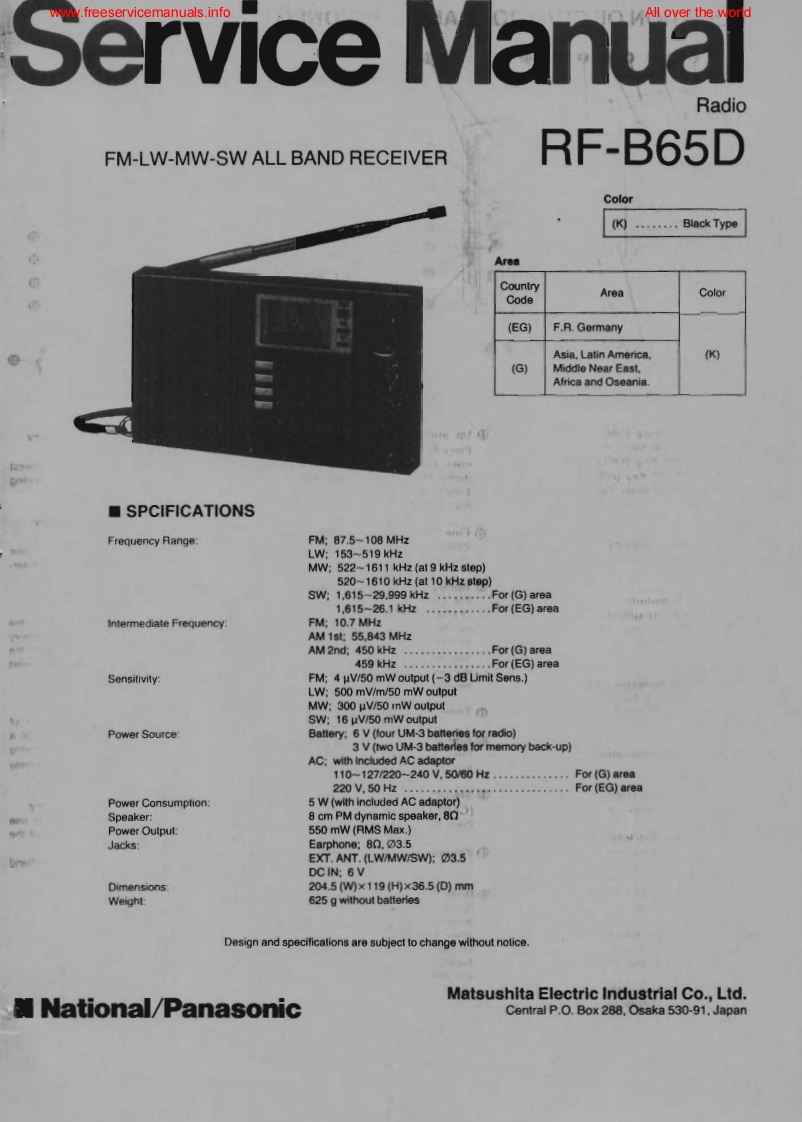

www.freeservicemanuals.infoAll over the wordService ManualRadioFM-LW-MW-SW ALL BAND RECEIVERRF-B65DColor(K)........Black TypeAreaCountryColorCodeArea(EG)F.R.GermanyAsia.Latin America.N(G)Middle Near East,Africa and Oseania.81国■SPCIFICATIONSFrequency Range:FM:87.5-108MHzon3LW:153-519kHzMW:522~1611 kHz (at 9 kHz step)520~1610 kHz (at 10 kHz step)SW:1,615-29.999kHz..........For (G)area1.615-26.1kHz............For (EG)areaIntermediate FrequencyFM:10.7 MHzAM 1st:55,843 MHzAM 2nd:450 kHz.For (G)area459 kHzFor (EG)areaSensitivity:FM:4 uV/50 mW output (-3 dB Limit Sens.)LW:500 mV/m/50 mW outputMW:300 uV/50 mnW outputsW:16μV/50 mW output1Power SourceBattery:6 V(four UM-3 batteries for radio)3 V(two UM-3 batterles for memory back-up)AC:with Included AC adaptor110-127/220-240V.50/60Hk,......,.For(G)area220V.50HzFor (EG)areaPower Consumption:5 W(with included AC adaptor)Speaker:8 cm PM dynamic speaker,80Power Output:550 mW (RMS Max.)Jacks:Earphone:80.03.5EXT.ANT.(LW/MW/SW):03.5DC IN:6VDimensions204.50M×119H×36.5(D)mmWeight:625 g without batteriesDesign and specifications are subject to change without notice.Matsushita Electric Industrial Co.,Ltd.National/PanasonicCentral P.O.Box 288,Osaka 530-91.Japan
