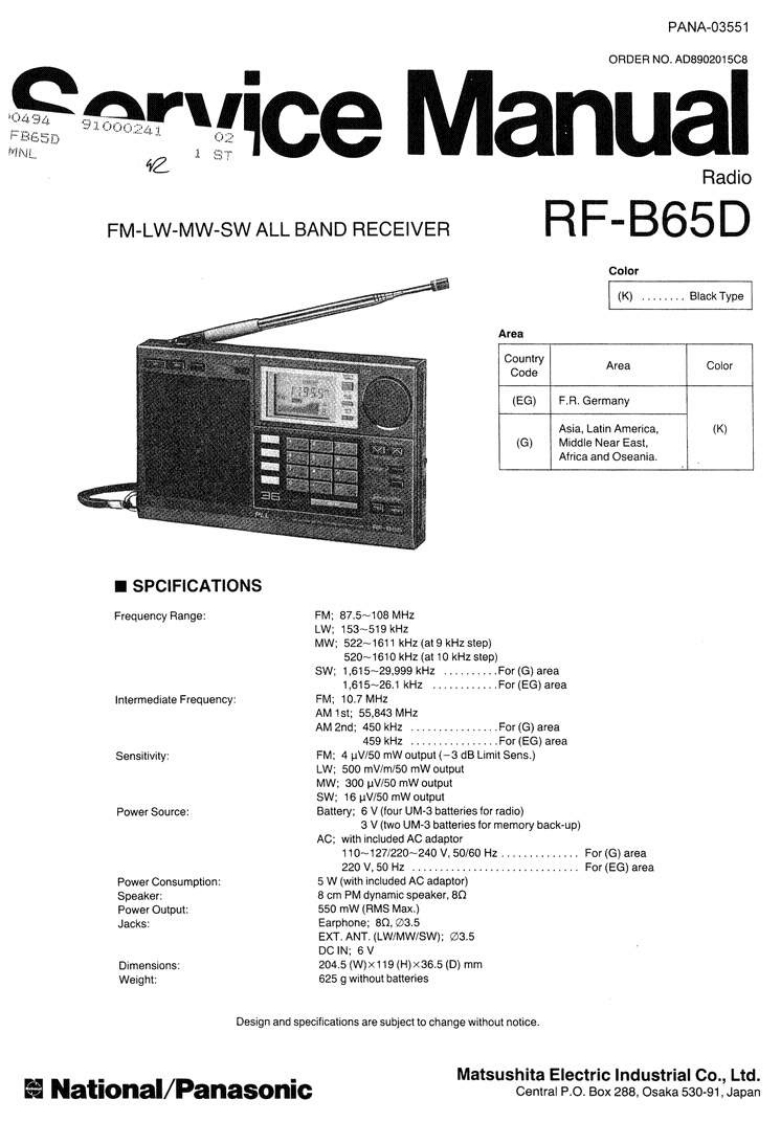

PANA-03551ORDER NO.AD8902015C8Sarvice Manua0494FB65D91000241例NLRadioFM-LW-MW-SW ALL BAND RECEIVERRF-B65DColor(K)........Black TypeAreaCountryCodeAreaColor(EG)F.R.GermanyAsia,Latin America.K的(G)Middle Near East.Africa and Oseania.■SPCIFICATIONSFrequency Range:FM:87.5-108MLW:153-519kHzMW:522-1611 kHz (at 9 kHz step)520-1610 kHz (at 10 kHz step)SW:1,615-29.999kH,,.,-,For(G)area1,615~26.1 kHz............For (EG)areaIntermediate Frequency:FM:10.7 MHzAM 1st:55.843 MHzAM 2nd:450 kHz................For(G)area459kH2,.,...,.,.For(EG)are8Sensitivity:FM:4 uV/50 mW output (-3 dB Limit Sens.)LW:500 mV/m/50 mW outputMW:300 uV/50 mW outputSW:16 uV/50 mW outputPower Source:Battery:6V(four UM-3 batteries for radio)3 V(two UM-3 batteries for memory back-up)AC:with included AC adaptor110-127220-240V,50/60Hz.+,For (G)area220V,50Hz.............................For(EG)areaPower Consumption:5 W(with included AC adaptor)Speaker:8 cm PM dynamic speaker,80Power Output:550 mW (RMS Max.)Jacks:Earphone:80.23.5EXT.ANT.(LW/MW/SW):3.5DC IN:6VDimensions204.5(W0×119(H×36.5(D)mmWeight:625 g without batteriesDesign and specifications are subject to change without notice.Matsushita Electric Industrial Co.,Ltd.National/PanasonicCentral P.O.Box 288.Osaka 530-91,Japan
