Sony_ICF-SW100E_ICF-SW100S_维修维护电器原理图手册_1997

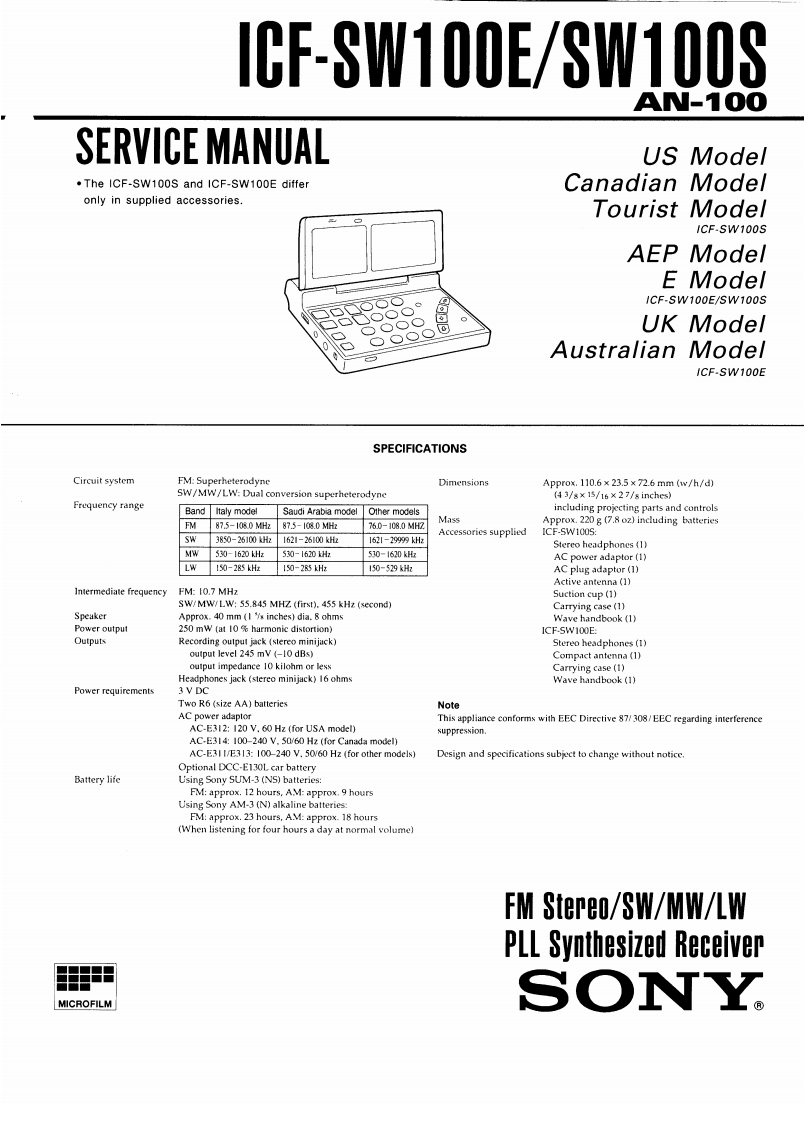

ICF-SW100E/SW100SAN-100SERVICE MANUALUS Model.The ICF-SW100S and ICF-SW100E differCanadian Modelonly in supplied accessories.Tourist ModelICF-SW100SAEP ModelE ModelICF-SW100E/SW100SUK ModelAustralian ModelICF-SW100ESPECIFICATIONSCircuit systemFM:SuperheterodyneDimensionsApprox.110.6x23.5×72.6mm(w/h/d)SW/MW/LW:Dual conversion superheterodyne(43/s×15/16×27/s inchesFrequency rangeBand ltaly modelSaudi Arabia model Other modelsincluding projecting parts and controlsFM87.5-1080 MHz87.5-I680MB76D-108.0MH7MassApprox.220 g (7.8 oz)including batteriesAccessories suppliedICF-SW100S:SW3850-25100H2162-26100k1621-29999kHStereo headphones (1)MW50-1620H530-1620h530-I620kHeAC power adaptor(i）1W150-28kHz150-28kH150-529khAC plug adaptor(I】Active antenna (1)Intermediate frequencyFM:10.7 MHzSuction cup (1)SW/MW/LW:55.845 MHZ (first).455 kHz (second)Carrying case(1】SpeakerApprox.40 mm (I %s inches)dia.8 ohmsWave handbook (1)Power output250 mW (at 10%harmonic distortion)ICF-SW100E:OutputsRecording oulput jack (stereo minijack)Stereo headphones (1)output level 245 mV (-10 dBs)Compact antenna (1)output impedance 10 kilohm or lessCarrying case(1)Headphones jack (stereo minijack)16 ohmsWave handbook (1)Power requirements3V DCTwo R6(size AA)batteriesNoteAC power adaplorThis appliance conforms with EEC Directive 87/308/EEC regarding interferenceAC-E312:120 V.60 Hz (for USA model)suppression.AC-E314:100-240 V.50/60 Hz (for Canada model)AC-E31 I/E313:100-240 V.50/60 Hz (for other models)Design and specifications subject to change without notice.Optional DCC-E130L car batteryBattery lifeUsing Sony SUM-3 (NS)batteriesFM:approx.12 hours,AM:approx.9 hoursUsing Sony AM-3 (N)alkaline batteries:FM:approx.23 hours.AM:approx.18 hours(When listening for four hours a day at normal volume)FM Stereo/SW/MW/LWPLL Synthesized ReceiverMICROFILMSONY
