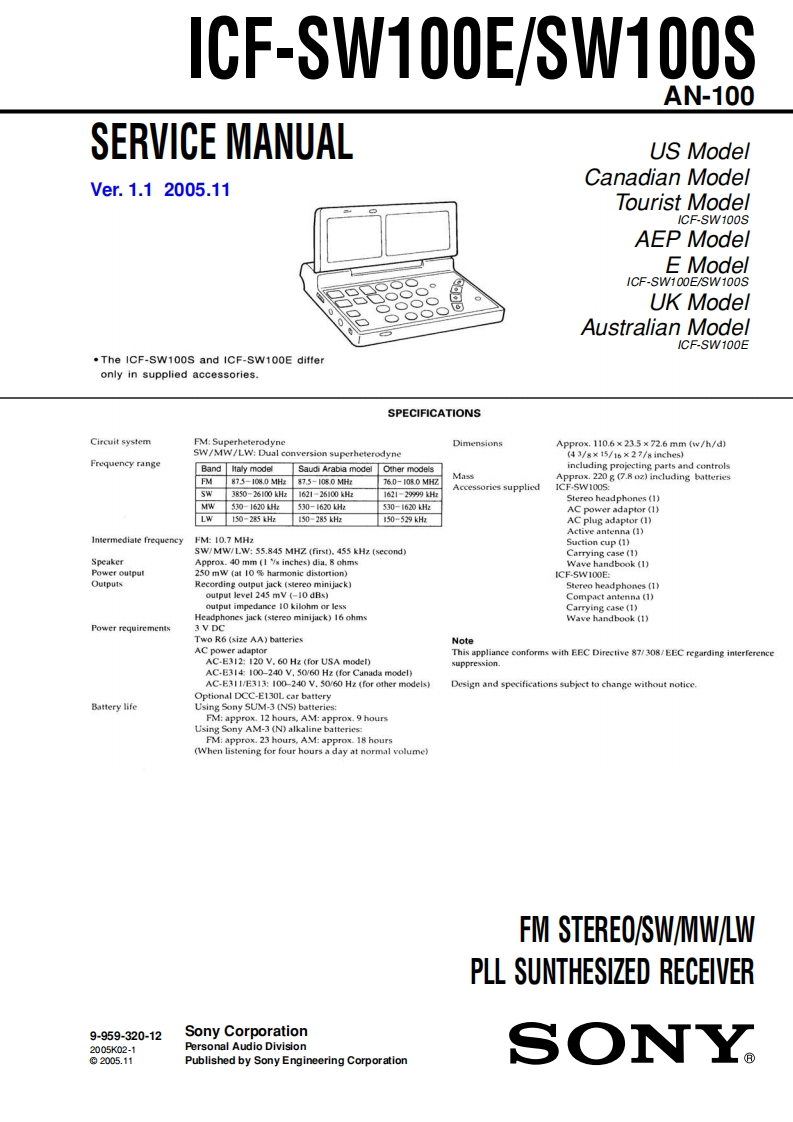

ICF-SW100E/SW100SAN-100SERVICE MANUALUS ModelCanadian ModelVer.1.12005.11Tourist ModelICF-SW100SAEP ModelEModelICF-SW100E/SW100SUK ModelAustralian ModelICF-SW100E.The ICF-SW100S and ICF-SW100E differonly in supplied accessories.SPECIFICATIONSCircuit systemFM:SuperheterodyneDimensionsApprox.110.6×235×72.6mmw/h/dSW/MW/LW:Dual conversion superheterodyne(43/8×15/16×27/8 inches)Frequency rangeBand ltaly modelSaudi Arabia model Other modelsincluding projecting parts and controlsFMMass875-108.0MH在s75-10w0MH2T760-080MH7Approx.220 g (7.8 oz)including batteriesICF-SW100S:3850-26100kHAccessories supplied1621-26100k1621-29999EStereo headphones(l】Mw50-1601H530-16201Hh530-1620HzAC power adaptor (1)LW150-25H150=285kHz150-529khAC plug adaptor(I》Active antenna(1)Intermediate frequencyFM:10.7 MHzSuction cup (1)SW/MW/LW:55.845 MHZ (first).455 kHz (second)Carrying case (1)SpeakerApprox.40 mm (1 Vx inches)dia.8 ohmsWave hndbook (1)Power outpul250 mW (at 10%harmonic distortion)ICF-SW100E:OutputsRecording output jack (stereo minijack)Sterco headphones (1)output level 245 mV(-10dBs)Compact antenna (1)output impedance 10 kilohm or lessCarrying case (1)Headphones jack (stereo minijack)16 ohmsWave handbook (1)Power requirements3VDCTwo R6(size AA)batteriesNoteC power udotorThis applianceconforms with EEC Directive 87/308/EEC regarding interferenceAC-E312:120 V.60 Hz (for USA model)suppression.AC-E314:100-240 V.50/60 Hz (for Canada model)AC-E311/E313:100-240 V.50/60 Hz (for other models)Design and specifications subject to change without noticeOptional DCC-E130L car batteryBattery lifeUsing Sony SUM-3 (NS)batteries:FM:approx.12 hours.AM:approx.9 hoursUsing Sony AM-3 (N)alkaline batteriesFM:approx.23 hours.AM:approx.18 hours(When listening for four hours a day at normal volume)FM STEREO/SW/MW/LWPLL SUNTHESIZED RECEIVER9-959-320-12Sony Corporation2005K02-1Personal Audio Division©2005.11Published by Sony Engineering CorporationSONY
