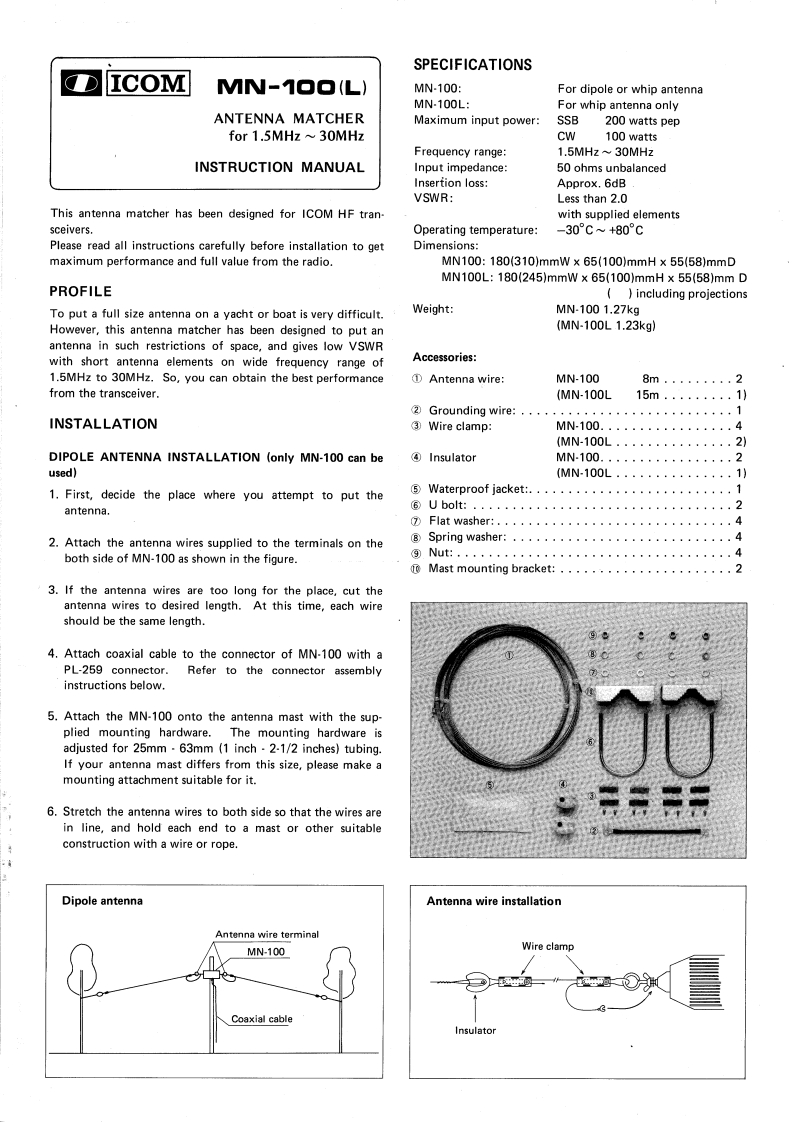

SPECIFICATIONSDICOMMN-IO▣(L)MN-100:For dipole or whip antennaMN-100L:For whip antenna onlyANTENNA MATCHERMaximum input power:SSB200 watts pepfor 1.5MHz ~30MHzCW100 wattsFrequency range:1.5MHz≈30MHzINSTRUCTION MANUALInput impedance:50 ohms unbalancedInsertion loss:Approx.6dBVSWR:Less than 2.0This antenna matcher has been designed for ICOM HF tran-with supplied elementssceivers.Operating temperature:-30°C+80°CPlease read all instructions carefully before installation to getDimensions:maximum performance and full value from the radio.MN100:180(310)mmW×65(100)mmH×55(58)mmDMN100L:180(245)mmW×65(100)mmH×55(58)mmDPROFILEincluding projectionsTo put a full size antenna on a yacht or boat is very difficult.Weight:MN-1001.27kgHowever,this antenna matcher has been designed to put an(MN-100L1.23kgantenna in such restrictions of space,and gives low VSWRwith short antenna elements on wide frequency range ofAccessories:1.5MHz to 30MHz.So,you can obtain the best performance①Antenna wire:MN-1008m.....2from the transceiver.(MN-100L15m10②Grounding wire::,,,,,,,,,.,....,.,,,1INSTALLATION③Wire clamp:MN-100..9(MN-100LDIPOLE ANTENNA INSTALLATION (only MN-100 can be④InsulatorMN100.,.··2used)(MN-100L11.First,decide the place where you attempt to put the5 Waterproof jacket:...1antenna.⑥U bolt::.·2⑦Flat washer::.。··········2.Attach the antenna wires supplied to the terminals on the⑧Spring washer:,.,,,both side of MN-100 as shown in the figure.Mast mounting bracket:.....................23.If the antenna wires are too long for the place,cut theantenna wires to desired length.At this time,each wireshould be the same length.4.Attach coaxial cable to the connector of MN-100 with aPL-259 connector.Refer to the connectorassemblyinstructions below.5.Attach the MN-100 onto the antenna mast with the sup-plied mounting hardware.The mounting hardware isadjusted for 25mm-63mm (1 inch-2-1/2 inches)tubing.If your antenna mast differs from this size,please make amounting attachment suitable for it.6.Stretch the antenna wires to both side so that the wires arein line,and hold each end to a mast or other suitableconstruction with a wire or rope.Dipole antennaAntenna wire installationAntenna wire terminalMN-100Wire clampCoaxial cableInsulator
