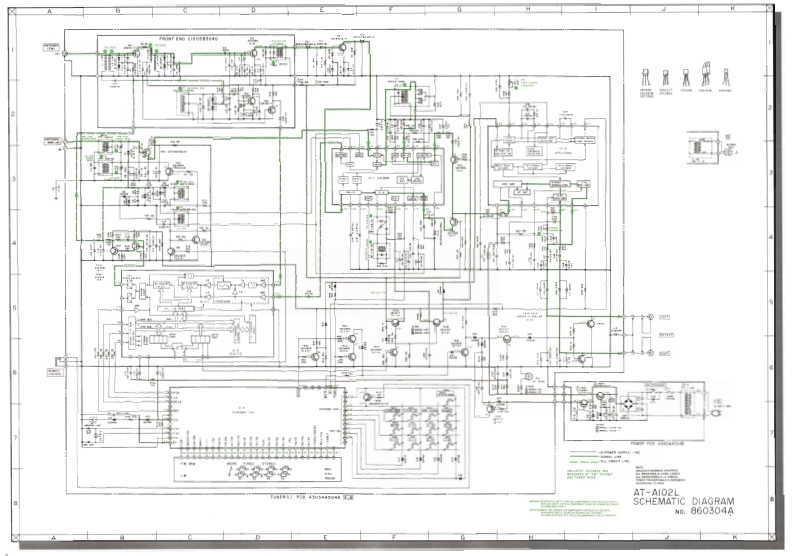

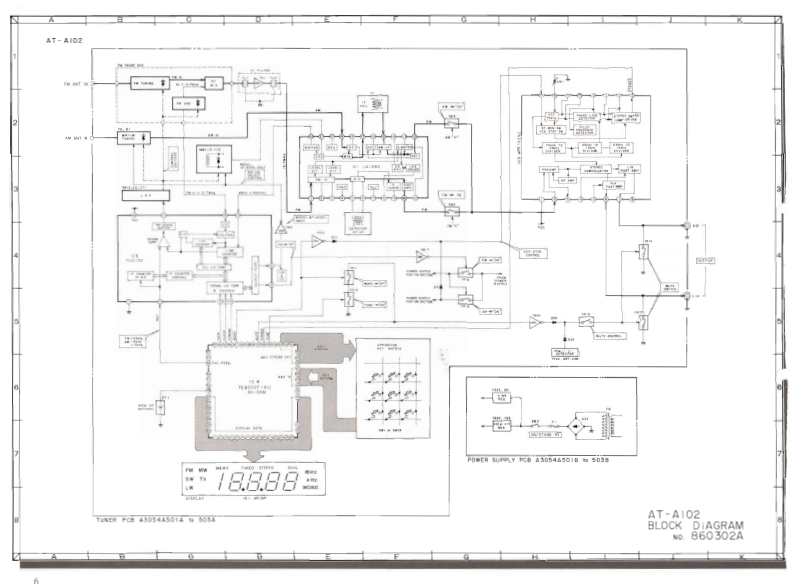

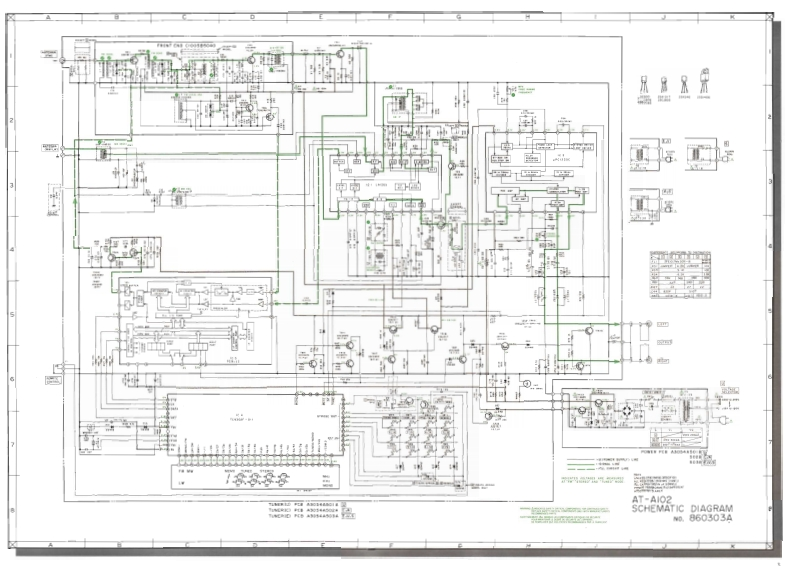

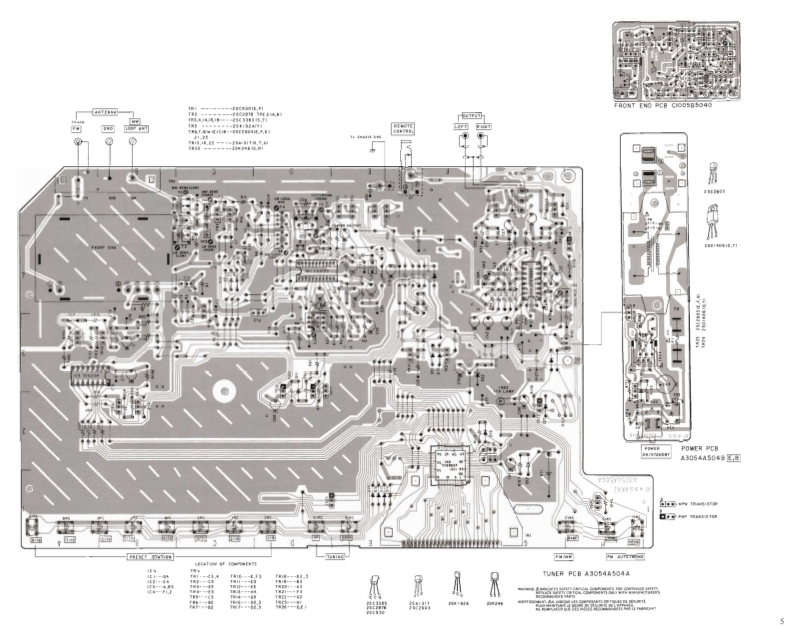

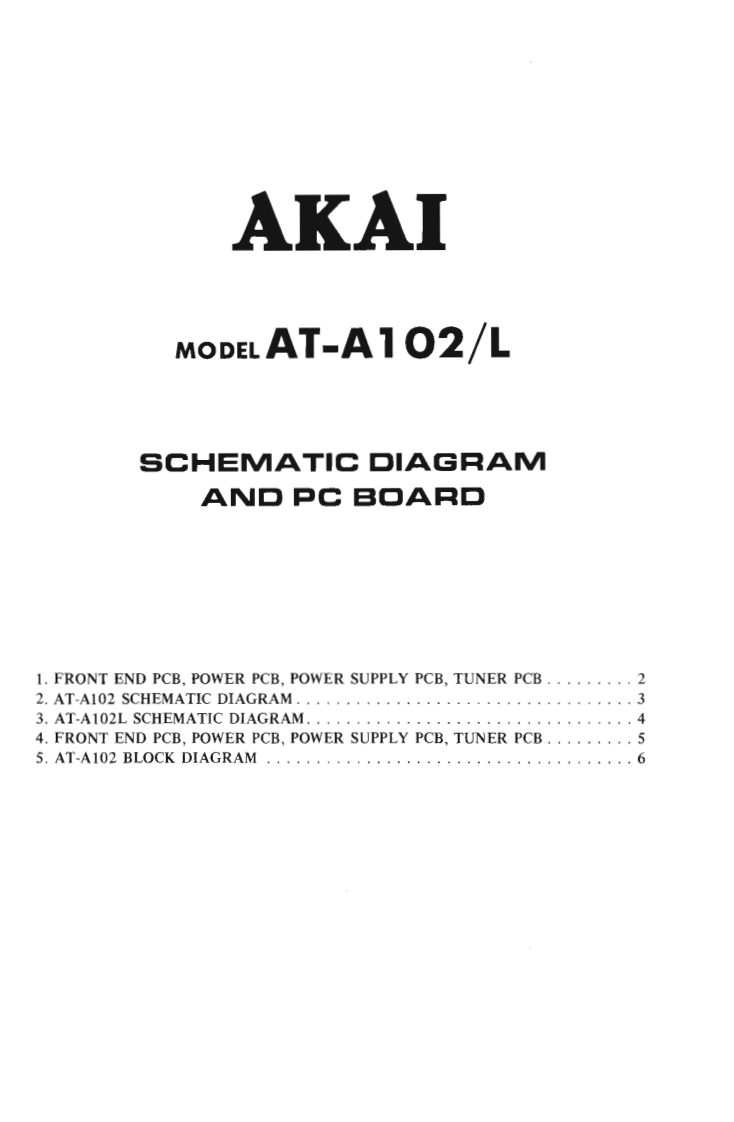

AKAIMODEL AT-A102/LSCHEMATIC DIAGRAMAND PC BOARD1.FRONT END PCB,POWER PCB,POWER SUPPLY PCB,TUNER PCB.·······.22.AT-A102 SCHEMATIC DIAGRAM...,,..,....·....·.·.····..·.·,,.33.AT-A102L SCHEMATIC DIAGRAM.......4.FRONT END PCB,POWER PCB,POWER SUPPLY PCB,TUNER PCB.···,S5.AT-A102BL0 CK DIAGRAM,,····,···········,·····,····,·,·,6
