松下DMR-EH58GC维修手册

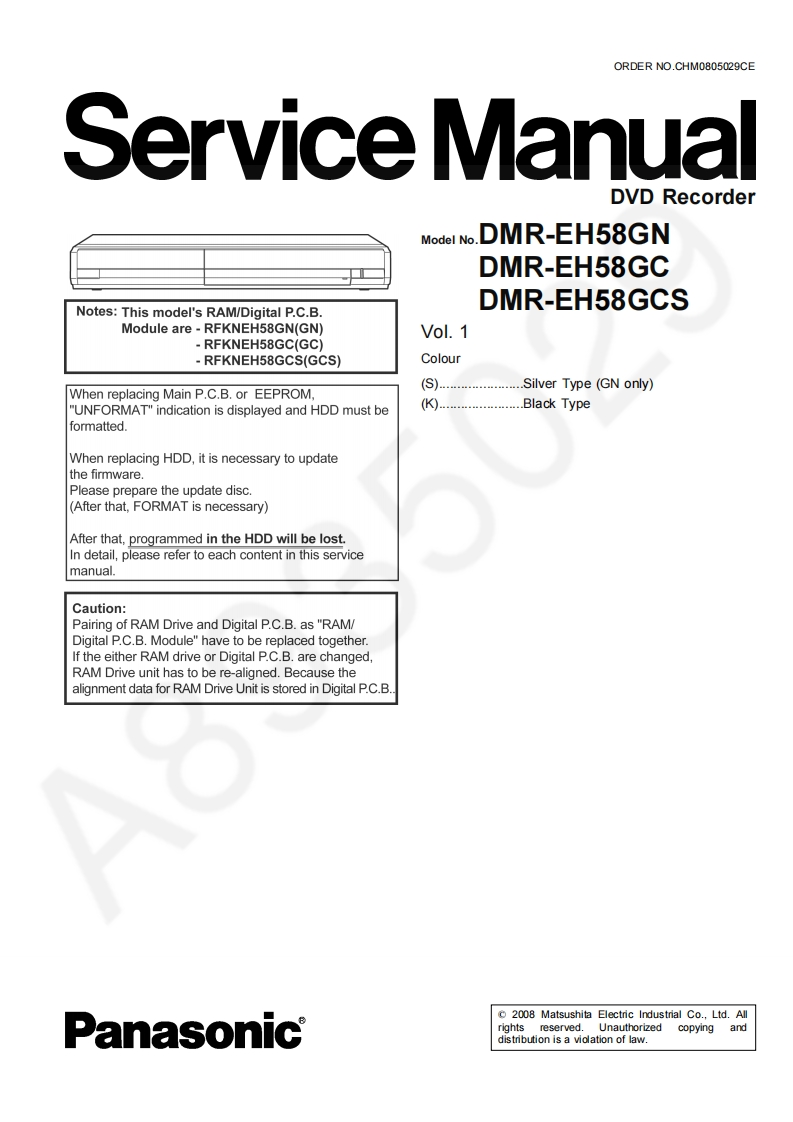

ORDER NO.CHM0805029CEService ManualDVD RecorderModo1 No.DMR-EH58GNDMR-EH58GCNotes:This model's RAM/Digital P.C.B.DMR-EH58GCSModule are -RFKNEH58GN(GN)Vol.1RFKNEH58GC(GC)-RFKNEH58GCS(GCS)ColourWhen replacing Main P.C.B.or EEPROM,(S).Silver Type (GN only)'UNFORMAT"indication is displayed and HDD must be(KW）.Black Typeformatted.When replacing HDD,it is necessary to updatethe firmware.Please prepare the update disc.(After that,FORMAT is necessary)After that,programmed in the HDD will be lost.In detail,please refer to each content in this servicemanual.Caution:Pairing of RAM Drive and Digital P.C.B.as "RAM/Digital P.C.B.Module"have to be replaced together.If the either RAM drive or Digital P.C.B.are changed,RAM Drive unit has to be re-aligned.Because thealignment data for RAM Drive Unit is stored in Digital P.C.B.2008 Matsushita Electric Industrial Co.,Ltd.AllPanasonicrights reserved.Unauthorized copyinganddistribution is a violation of law.
