Pioneer-CT-S88R-Service-Manual维修电器原理图手册

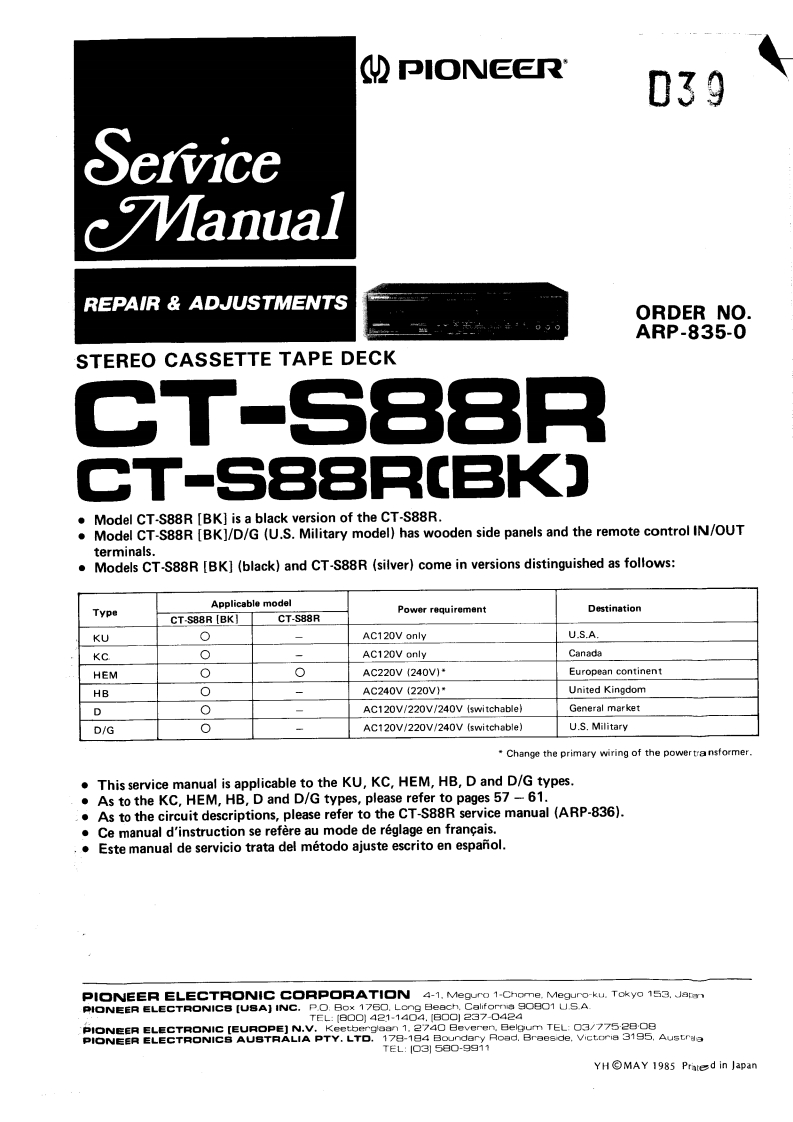

PIONEERD39ServiceManualREPAIR ADJUSTMENTSORDER NO.ARP-835-0STEREO CASSETTE TAPE DECKCT-S88RCT-S88RCBKJ.Model CT-S88R [BK]is a black version of the CT-S88R..Model CT-S88R [BK]/D/G (U.S.Military model)has wooden side panels and the remote control IN/OUTterminals..Models CT-S88R [BK](black)and CT-S88R (silver)come in versions distinguished as follows:Applicable modelTypePower requirementDestinationCT-S88RIBK】CT-S88RKU0AC120V onlyU.S.A.KCOAC120V onlyCanadaHEM00AC220V(240V)European continentHB0AC240V(220V)United KingdomD0AC120V/220V/240V (switchable)General marketD/G0AC120V/220V/240V (switchable)U.S.MilitaryChange the primary wiring of the powertra nsformer..This service manual is applicable to the KU,KC,HEM,HB,D and D/G types..As to the KC,HEM,HB,D and D/G types,please refer to pages 57-61..As to the circuit descriptions,please refer to the CT-S88R service manual (ARP-836).Ce manual d'instruction se refere au mode de reglage en frangais.●Este manual de servicio trata del metodo ajuste escrito en espanol.PIONEER ELECTRONIC CORPORATION 4-1.Meguro 1-chome.Meguro-ku.Tokyo 153.JapoPIONEER ELECTRONICS [USA]INC.P.O.Box 1760,Long Beach,California 90801 U.S.A.TEL:B00421-1404.o1237-0424PIONEER ELECTRONIC [EUROPE]N.V.Keetberglaan 1.2740 Beveren.Belgum TEL:03/775280BPIONEER ELECTRONICB AUSTRALIA PTY.LTD.178-184 Boundary Road,Braeside.Victoria 3195.AustraaTEL:1031590-9911YHMAY 1985 Prated in Japan
