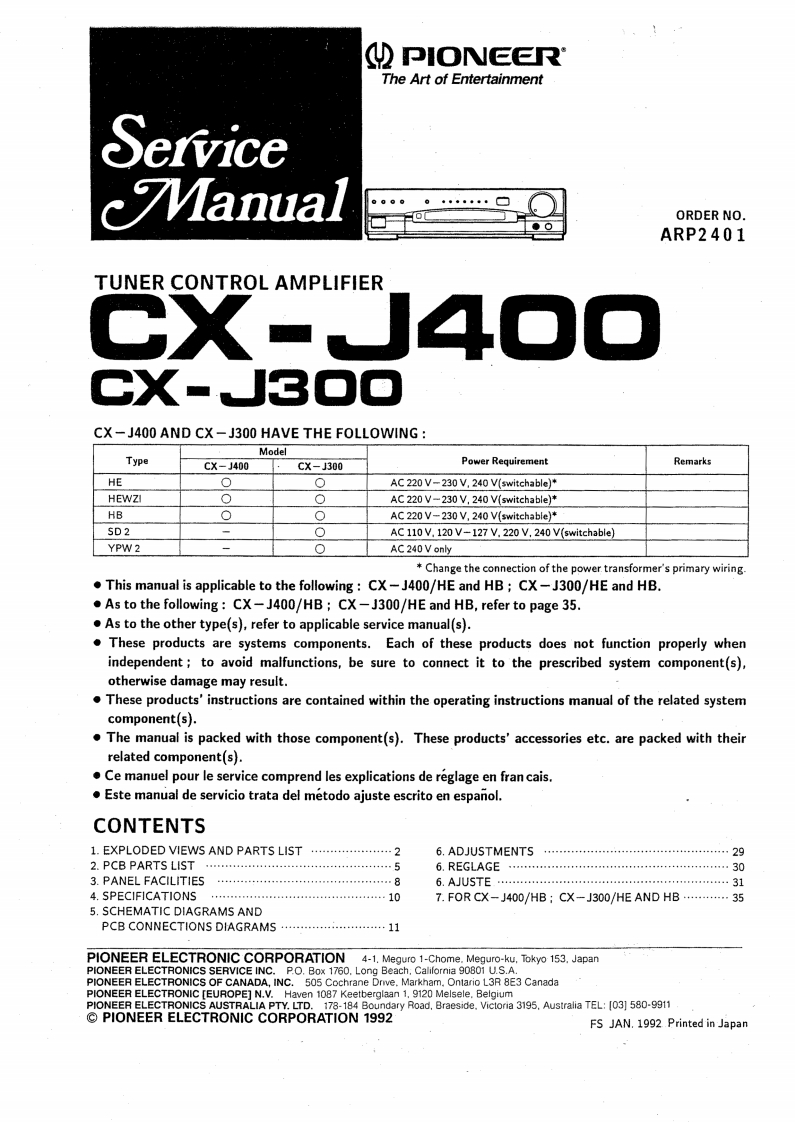

PIONEERThe Art of EntertainmentServicecManualORDER NO.ARP2401TUNER CONTROL AMPLIFIERCX-J400 AND CX-J300 HAVE THE FOLLOWING:ModelTypeCX-J400CX-J300Power RequirementRemarksHE○○AC 220 V-230 V,240 V(switchable)*HEWZI0OAC 220 V-230 V,240 V(switchable)+HB0OAC 220 V-230 V,240 V(switchable)*SD20AC 110 V,120 V-127 V,220 V,240 V(switchable)YPW 20AC 240 V only+Change the connection of the power transformer's primary wiring..This manual is applicable to the following CX-J400/HE and HB;CX-J300/HE and HB..As to the following:CX-J400/HB;CX-J300/HE and HB,refer to page 35..As to the other type(s),refer to applicable service manual(s)..These products are systems components.Each of these products does not function properly whenindependent;to avoid malfunctions,be sure to connect it to the prescribed system component(s),otherwise damage may result.These products'instructions are contained within the operating instructions manual of the related systemcomponent(s).The manual is packed with those component(s).These products'accessories etc.are packed with theirrelated component(s).Ce manuel pour le service comprend les explications de reglage en fran cais.Este manual de servicio trata del metodo ajuste escrito en espanol.CONTENTS1.EXPLODED VIEWS AND PARTS LIST ....................-26.ADJUSTMENTS…292.PCB PARTS LIST…56.REGLAGE…303.PANEL FACILITIES86.AJUSTE…314.SPECIFICATIONS7.FOR CX-J400/HB CX-J300/HE AND HB ........-.-.355.SCHEMATIC DIAGRAMS ANDPCB CONNECTIONS DIAGRAMS......11PIONEER ELECTRONIC CORPORATION 4-1.Meguro 1-Chome.Meguro-ku.Tokyo 153.JapanPIONEER ELECTRONICS SERVICE INC.P.O.Box 1760.Long Beach.California 90801 U.S.A.PIONEER ELECTRONICS OF CANADA,INC.505 Cochrane Drive.Markham.Ontario L3R 8E3 CanadaPIONEER ELECTRONIC [EUROPE]N.V.Haven 1087 Keetberglaan 1.9120 Melsele.BelgiumPIONEER ELECTRONICS AUSTRALIA PTY.LTD.178-184 Boundary Road,Braeside.Victoria 3195.Australia TEL:[03]580-9911PIONEER ELECTRONIC CORPORATION 1992FS JAN.1992 Printed in Japan
