先锋pioneer_a339_a449_维修图纸手册

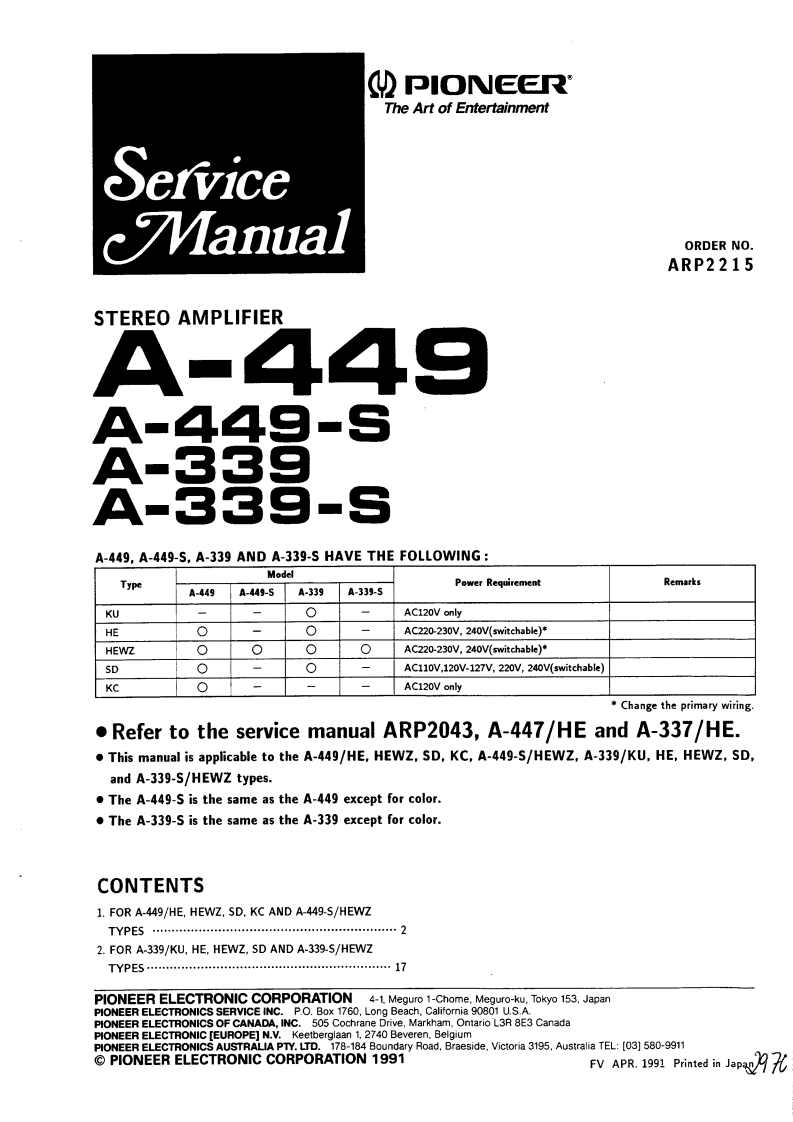

PIONEERThe Art of EntertainmentServicec☑TanualORDER NO.ARP2215STEREO AMPLIFIERA-449A-449-SA-449,A-449-S,A-339 AND A-339-S HAVE THE FOLLOWING:ModelTypePower RequirementRemarksA-449A-449-5A-339A-339-5KUOAC120V onlyHE00AC220-230V,240V(switchable)*HEWZQ000AC220-230V,240V(switchable)*%00AC110V,120V-127V,220V,240V(switchable)KCOAC120V onlyChange the primary wiring..Refer to the service manual ARP2043,A-447/HE and A-337/HE..This manual is applicable to the A-449/HE,HEWZ,SD,KC,A-449-S/HEWZ,A-339/KU,HE,HEWZ,SDand A-339-S/HEWZ types.The A-449-S is the same as the A-449 except for color.The A-339-S is the same as the A-339 except for color.CONTENTS1.FOR A-449/HE,HEWZ,SD.KC AND A-449-S/HEWZTYPES4t4444”22.FOR A-339/KU,HE.HEWZ,SD AND A-339-S/HEWZTYPES…17PIONEER ELECTRONIC CORPORATION 4-1.Meguro 1-Chome.Meguro-ku.Tokyo 153.JapanPIONEER ELECTRONICS SERVICE INC.P.O.Box 1760,Long Beach,Califomia 90801 U.S.A.PIONEER ELECTRONICS OF CANADA,INC.505 Cochrane Drive,Markham.Ontario L3R 8E3 CanadaPIONEER ELECTRONIC [EUROPE]N.V.Keetberglaan 1,2740 Beveren.BelgiumPIONEER ELECTRONICS AUSTRALIA PTY.LTD.178-184 Boundary Road,Braeside.Victoria 3195.Australia TEL:[03]580-9911PIONEER ELECTRONIC CORPORATION 1991FV APR.191 Printed in
