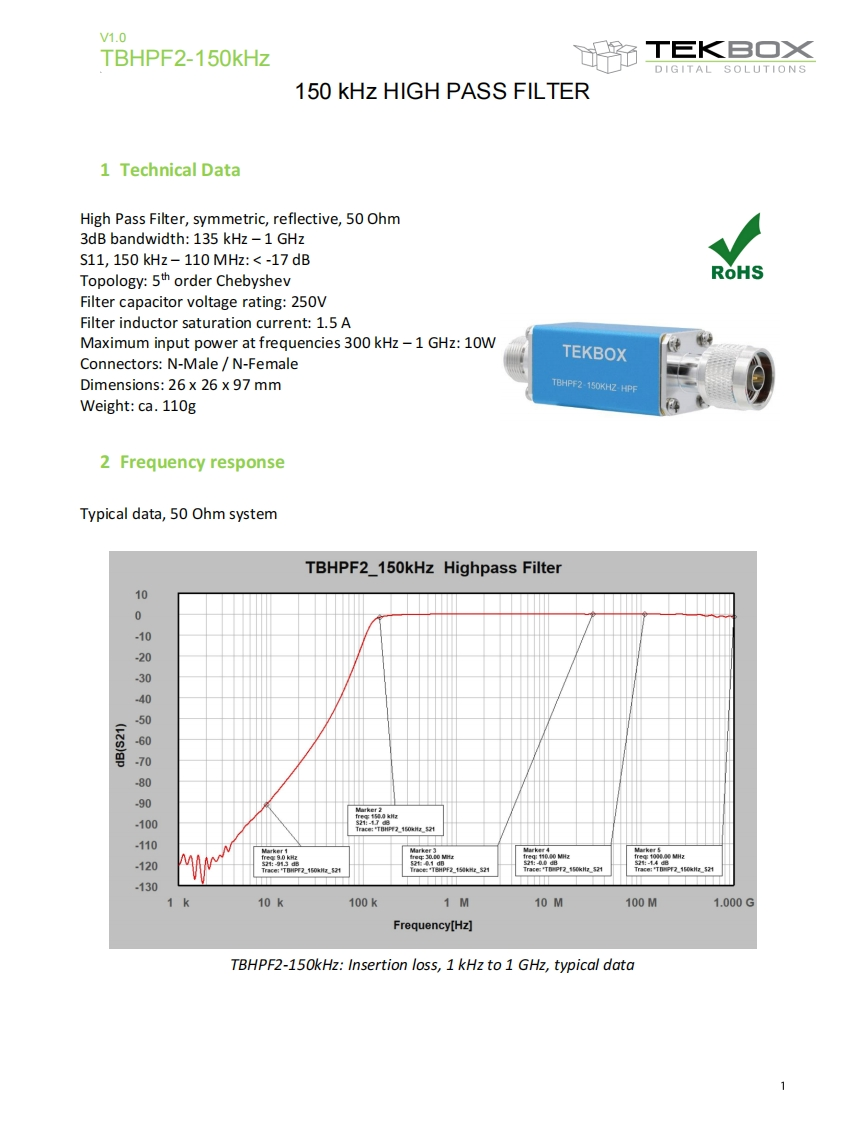

V1.0TBHPF2-150kHz帝T巨KB▣XDIGITAL SOLUTIONS150 kHz HIGH PASS FILTER1 Technical DataHigh Pass Filter,symmetric,reflective,50 Ohm3dB bandwidth:135 kHz-1 GHzS11,150kHz-110MHz:<-17dBTopology:5th order ChebyshevRoHSFilter capacitor voltage rating:250VFilter inductor saturation current:1.5 AMaximum input power at frequencies 300 kHz-1 GHz:10WConnectors:N-Male N-FemaleTEKBOX6eDimensions:26 x 26 x 97 mmTBHPF2-150KHZ-HPFWeight:ca.110g2 Frequency responseTypical data,50 Ohm systemTBHPF2_150kHz Highpass Filter700-10-203040-5060-7080-90.-100..-110.120Trace:TBMPF2_$2113010k100k1 M10M100M1.000GFrequency[Hz]TBHPF2-150kHz:Insertion loss,1 kHz to 1 GHz,typical data1
