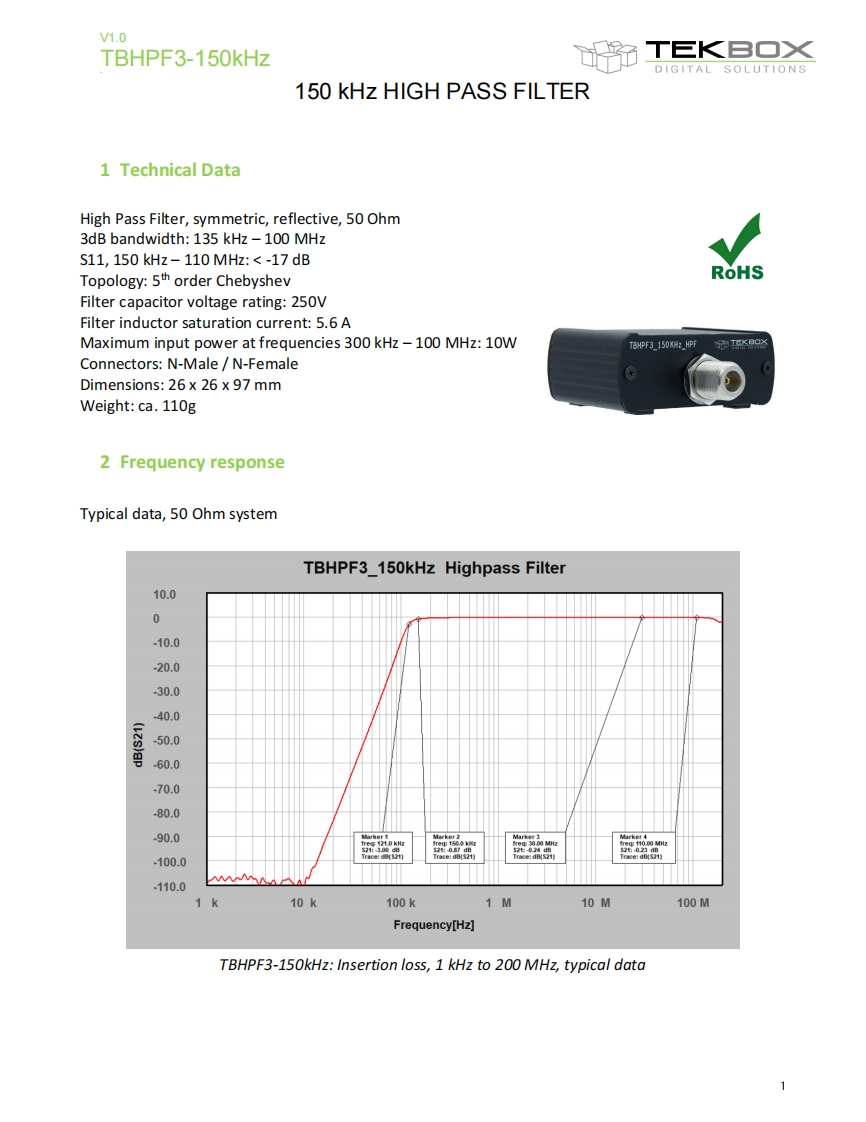

V1.0TBHPF3-150kHzT巨K旦o×DIGITAL SOLUTIONS150 kHz HIGH PASS FILTER1 Technical DataHigh Pass Filter,symmetric,reflective,50 Ohm3dB bandwidth:135 kHz-100 MHzS11,150kHz-110MHz:<-17dBTopology:5th order ChebyshevRoHSFilter capacitor voltage rating:250VFilter inductor saturation current:5.6 AMaximum input power at frequencies 300 kHz-100 MHz:10WTBHPF3_150KH2_HPFxConnectors:N-Male N-FemaleDimensions:26 x 26 x 97 mmWeight:ca.110g2 Frequency responseTypical data,50 Ohm systemTBHPF3_150kHz Highpass Filter10.00-10.020.0-30.040.0-50.0-60.0-70.0-80.090.0-100.0M人-110.010k100k1M10M100MFrequency[Hz]TBHPF3-150kHz:Insertion loss,1 kHz to 200 MHz,typical data1
