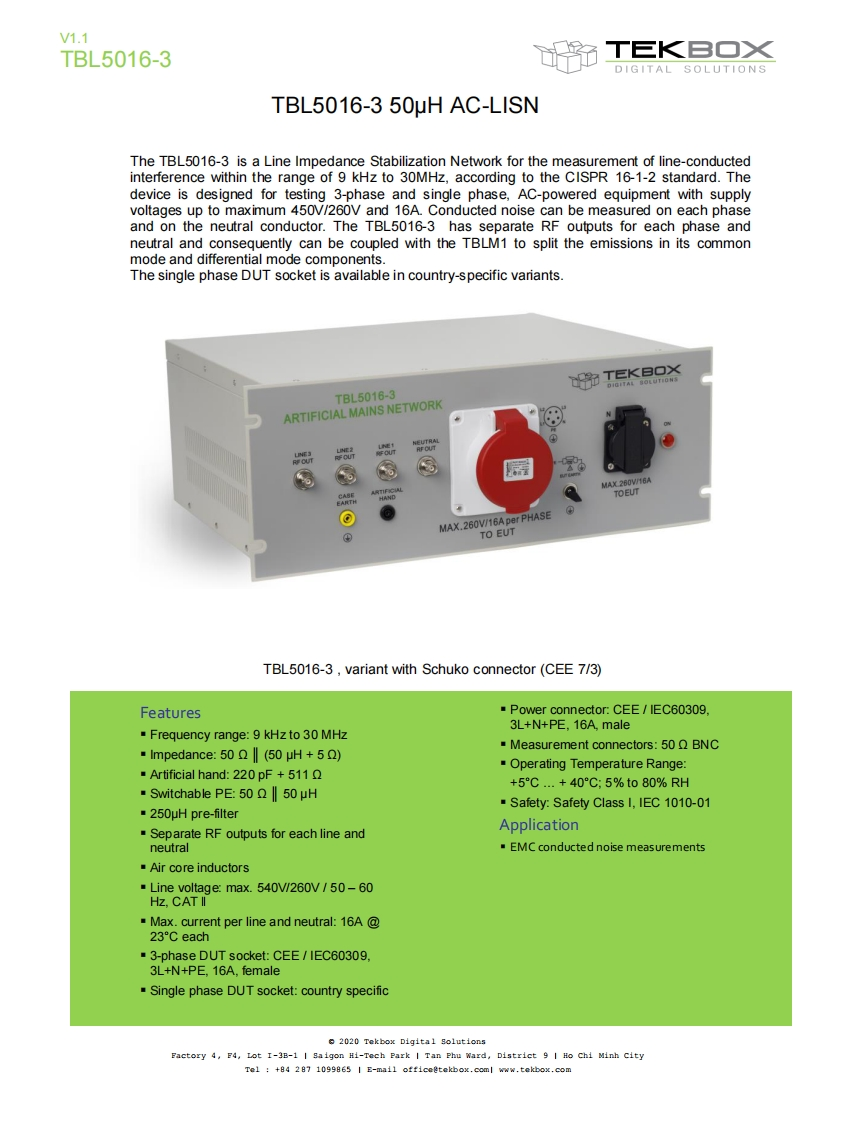

V1.1TBL5016-3布T巨KBOXDIGITAL SOLUTIONSTBL5016-3 50uH AC-LISNThe TBL5016-3 is a Line Impedance Stabilization Network for the measurement of line-conductedinterference within the range of 9 kHz to 30MHz,according to the CISPR 16-1-2 standard.Thedevice is designed for testing 3-phase and single phase,AC-powered equipment with supplyvoltages up to maximum 450V/260V and 16A.Conducted noise can be measured on each phaseand on the neutral conductor.The TBL5016-3 has separate RF outputs for each phase andneutral and consequently can be coupled with the TBLM1 to split the emissions in its commonmode and differential mode components.The single phase DUT socket is available in country-specific variants.品TEKBOXTBL5016-3ARTIFICIAL MAINS NETWORK⑤MAX260V/16ATOEUT⊙MAX.260V/16A per PHASETO EUTTBL5016-3,variant with Schuko connector(CEE 7/3)FeaturesPower connector:CEE/IEC60309,3L+N+PE,16A,male.Frequency range:9 kHz to 30 MHz·Impedance:50n‖(50uH+5)Measurement connectors:50 Q BNCOperating Temperature Range:.Artificial hand:220 pF +511Q+5℃..+40C,5%to80%RH·Switchable PE:50n‖50μH.Safety:Safety Class I,IEC 1010-01250uH pre-filterSeparate RF outputs for each line andApplicationneutralEMC conducted noise measurements"Air core inductors.Line voltage:max.540V/260V/50-60Hz.CAT lI.Max.current per line and neutral:16A@23C each3-phase DUT socket:CEE /IEC60309.3L+N+PE.16A,femaleSingle phase DUT socket:country specific2020 Tekbox Digital SolutionsFactory 4,F4,Lot I-3B-1 I Saigon Hi-Tech Park I Tan Phu Ward,District9I Ho Chi Minh CityTel +84 287 1099865 I E-mail office@tekbox.coml www.tekbox.com
