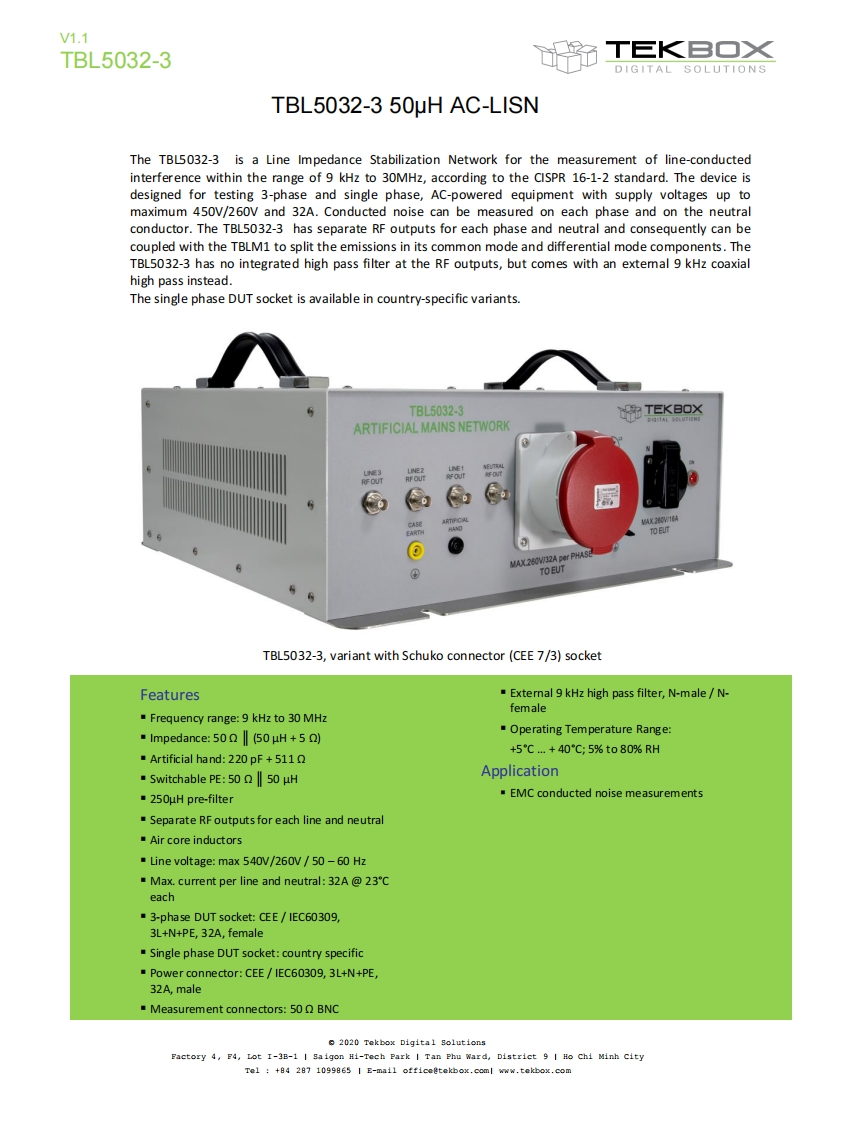

V1.1TBL5032-3豹TEKBO×DIGITAL SOLUTIONSTBL5032-3 50uH AC-LISNThe TBL5032-3 is a Line Impedance Stabilization Network for the measurement of line-conductedinterference within the range of 9 kHz to 30MHz,according to the CISPR 16-1-2 standard.The device isdesigned for testing 3-phase and single phase,AC-powered equipment with supply voltages up tomaximum 450V/260V and 32A.Conducted noise can be measured on each phase and on the neutralconductor.The TBL5032-3 has separate RF outputs for each phase and neutral and consequently can becoupled with the TBLM1 to split the emissions in its common mode and differential mode components.TheTBL5032-3 has no integrated high pass filter at the RF outputs,but comes with an extemal 9 kHz coaxialhigh pass instead.The single phase DUT socket is available in country-specific variants.TBL5032.3多TEKB0XARTIFICIAL MAINS NETWORK思TO EUTMAX.260V/32A per PHASETOEUTTBL5032-3,variant with Schuko connector(CEE 7/3)socketFeaturesExternal 9 kHz high pass filter,N-male N-femaleFrequency range:9 kHz to 30 MHz·Impedance:50‖(50μH+5)Operating Temperature Range:+5C+40C:5%to80%RHArtificial hand:220 pF +511Switchable PE:50 50 uHApplication■250μHpre-filterEMC conducted noise measurements"Separate RFoutputs for each line and neutralAir core inductors*Line voltage:max 540V/260V/50-60 HzMax.current per line and neutral:32A@23'Ceach3-phase DUT socket:CEE/IEC60309,3L+N+PE,32A,femaleSingle phase DUT socket:country specificPower connector:CEE IEC60309,3L+N+PE,32A,maleMeasurement connectors:50 BNC2020 Tekbox Digital SolutionsFactory 4,F4,Lot I-3B-1 I Saigon Hi-Tech Park I Tan Phu Ward,District 9 I Ho Chi Minh cityTel +84 287 1099865 I E-mail office@tekbox.coml www.tekbox.com
