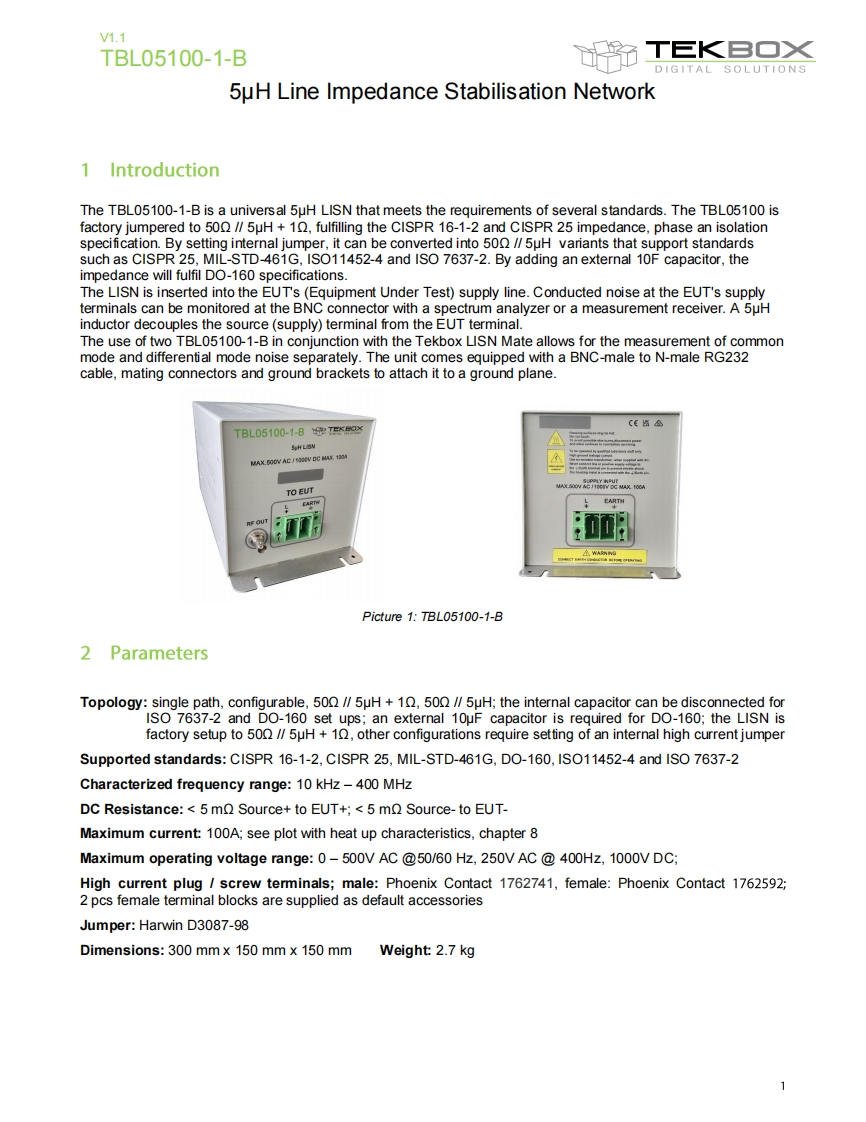

V1.1TBL05100-1-B畅T巨K旦口×DIGITAL SOLUTIONS5uH Line Impedance Stabilisation Network1 IntroductionThe TBL05100-1-B is a universal 5uH LISN that meets the requirements of several standards.The TBL05100 isfactory jumpered to 500 /5uH +10,fulfilling the CISPR 16-1-2 and CISPR 25 impedance,phase an isolationspecification.By setting internal jumper,it can be converted into 500 /5uH variants that support standardssuch as CISPR 25,MIL-STD-461G,ISO11452-4 and ISO 7637-2.By adding an external 10F capacitor,theimpedance will fulfil DO-160 specifications.The LISN is inserted into the EUTs(Equipment Under Test)supply line.Conducted noise at the EUT's supplyterminals can be monitored at the BNC connector with a spectrum analyzer or a measurement receiver.A 5uHinductor decouples the source (supply)terminal from the EUT terminal.The use of two TBL05100-1-B in conjunction with the Tekbox LISN Mate allows for the measurement of commonmode and differential mode noise separately.The unit comes equipped with a BNC-male to N-male RG232cable,mating connectors and ground brackets to attach it to a ground plane.TBL05100-1-BT9MAX.BOOVAC /DC MAX 10ATO EUTEATHPicture 1:TBL05100-1-B2 ParametersTopology:single path,configurable,500 /5uH 10,500 /5uH;the internal capacitor can be disconnected forISO 7637-2 and DO-160 set ups;an external 10uF capacitor is required for DO-160;the LISN isfactory setup to 500//5uH 10,other configurations require setting of an internal high current jumperSupported standards:CISPR 16-1-2,CISPR 25,MIL-STD-461G,DO-160,ISO11452-4 and ISO 7637-2Characterized frequency range:10 kHz-400 MHzDC Resistance:5 mQ Source+to EUT+;5 m Source-to EUT-Maximum current:100A;see plot with heat up characteristics,chapter 8Maximum operating voltage range:0-500V AC @50/60 Hz,250V AC 400Hz,1000V DC;High current plug screw terminals;male:Phoenix Contact 1762741,female:Phoenix Contact 1762592;2 pcs female terminal blocks are supplied as default accessoriesJumper:Harwin D3087-98Dimensions:300 mm x 150 mm x 150 mm Weight:2.7 kg1
