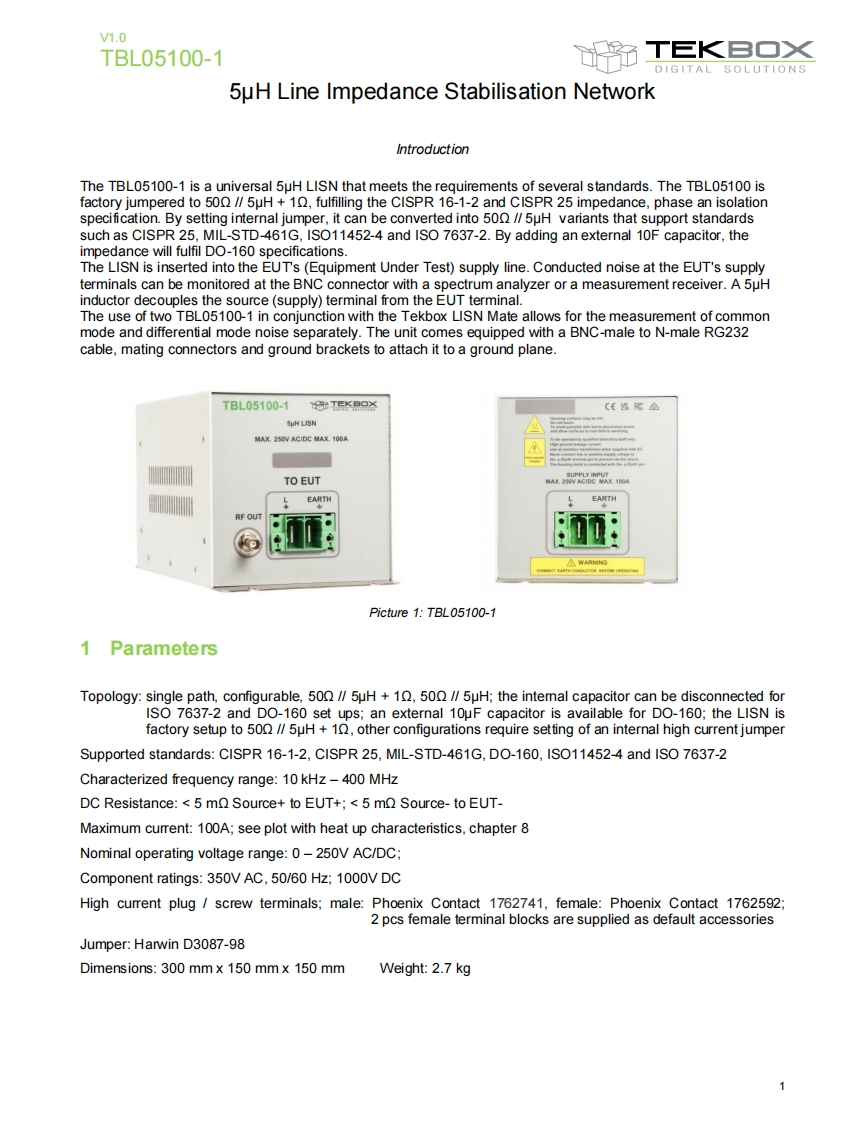

V1.0TBL05100-1畅T巨K旦O×DIGITAL SOLUTIONS5uH Line Impedance Stabilisation NetworkIntroductionThe TBL05100-1 is a universal 5uH LISN that meets the requirements of several standards.The TBL05100 isfactory jumpered to 500 /5uH 10,fulfilling the CISPR 16-1-2 and CISPR 25 impedance,phase an isolationspecification.By setting internal jumper,it can be converted into 500//5uH variants that support standardssuch as CISPR 25,MIL-STD-461G,ISO11452-4 and ISO 7637-2.By adding an external 10F capacitor,theimpedance will fulfil DO-160 specifications.The LISN is inserted into the EUT's (Equipment Under Test)supply line.Conducted noise at the EUT's supplyterminals can be monitored at the BNC connector with a spectrum analyzer or a measurement receiver.A 5uHinductor decouples the source(supply)terminal from the EUT terminal.The use of two TBL05100-1 in conjunction with the Tekbox LISN Mate allows for the measurement of commonmode and differential mode noise separately.The unit comes equipped with a BNC-male to N-male RG232cable,mating connectors and ground brackets to attach it to a ground plane.TBL05100-1 TEKBO×(EE△SuH LISNMAX.250V ACIDC MAX.100ATO EUTEARTHEARTHRF OUTPicture 1:TBL05100-11 ParametersTopology:single path,configurable,500//5uH +10,500 /5uH;the intemal capacitor can be disconnected forISO 7637-2 and DO-160 set ups;an external 10uF capacitor is available for DO-160;the LISN isfactory setup to 500 /5uH 10,other configurations require setting of an internal high current jumperSupported standards:CISPR 16-1-2,CISPR 25,MIL-STD-461G,DO-160,ISO11452-4 and ISO 7637-2Characterized frequency range:10 kHz-400 MHzDC Resistance:5 mQ Source+to EUT+;5 mo Source-to EUT-Maximum current:100A;see plot with heat up characteristics,chapter 8Nominal operating voltage range:0-250V AC/DC;Component ratings:350V AC,50/60 Hz;1000V DCHigh current plug screw terminals;male:Phoenix Contact 1762741,female:Phoenix Contact 1762592;2 pcs female terminal blocks are supplied as default accessoriesJumper:Harwin D3087-98Dimensions:300 mm x 150 mm x 150 mmWeight:2.7 kg1
