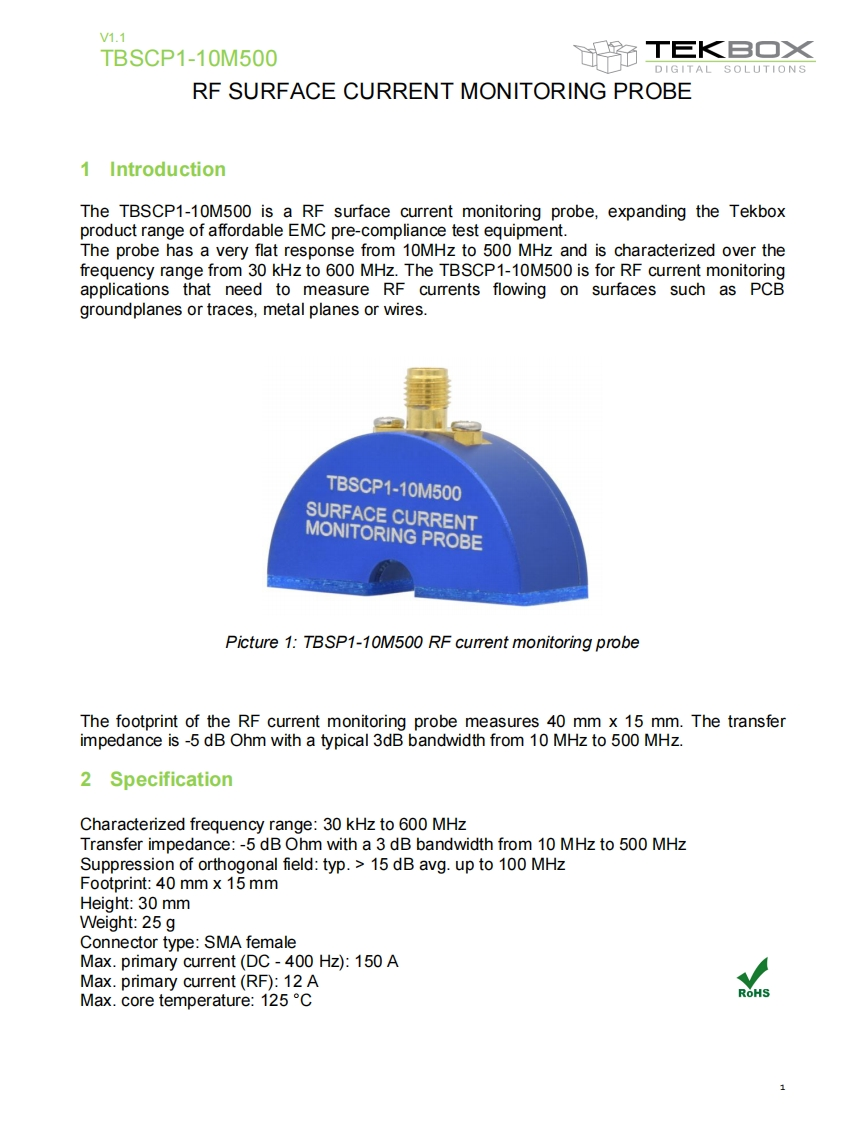

V1.1TBSCP1-10M500畅T巨K旦口×DIGITAL SOLUTIONSRF SURFACE CURRENT MONITORING PROBE1 IntroductionThe TBSCP1-10M500 is a RF surface current monitoring probe,expanding the Tekboxproduct range of affordable EMC pre-compliance test equipment.The probe has a very flat response from 10MHz to 500 MHz and is characterized over thefrequency range from 30 kHz to 600 MHz.The TBSCP1-10M500 is for RF current monitoringapplications that need to measure RF currents flowing on surfaces such as PCBgroundplanes or traces,metal planes or wires.TBSCP1-10M500SURFACE CURRENTMONITORING PROBEPicture 1:TBSP1-10M500 RF current monitoring probeThe footprint of the RF current monitoring probe measures 40 mm x 15 mm.The transferimpedance is-5 dB Ohm with a typical 3dB bandwidth from 10 MHz to 500 MHz.2 SpecificationCharacterized frequency range:30 kHz to 600 MHzTransfer impedance:-5 dB Ohm with a 3 dB bandwidth from 10 MHz to 500 MHzSuppression of orthogonal field:typ.15 dB avg.up to 100 MHzFootprint:40 mm x 15 mmHeight:30 mmWeight:25 gConnector type:SMA femaleMax.primary current (DC 400 Hz):150 AMax.primary current(RF):12 AMax.core temperature:125 CRoHS1
