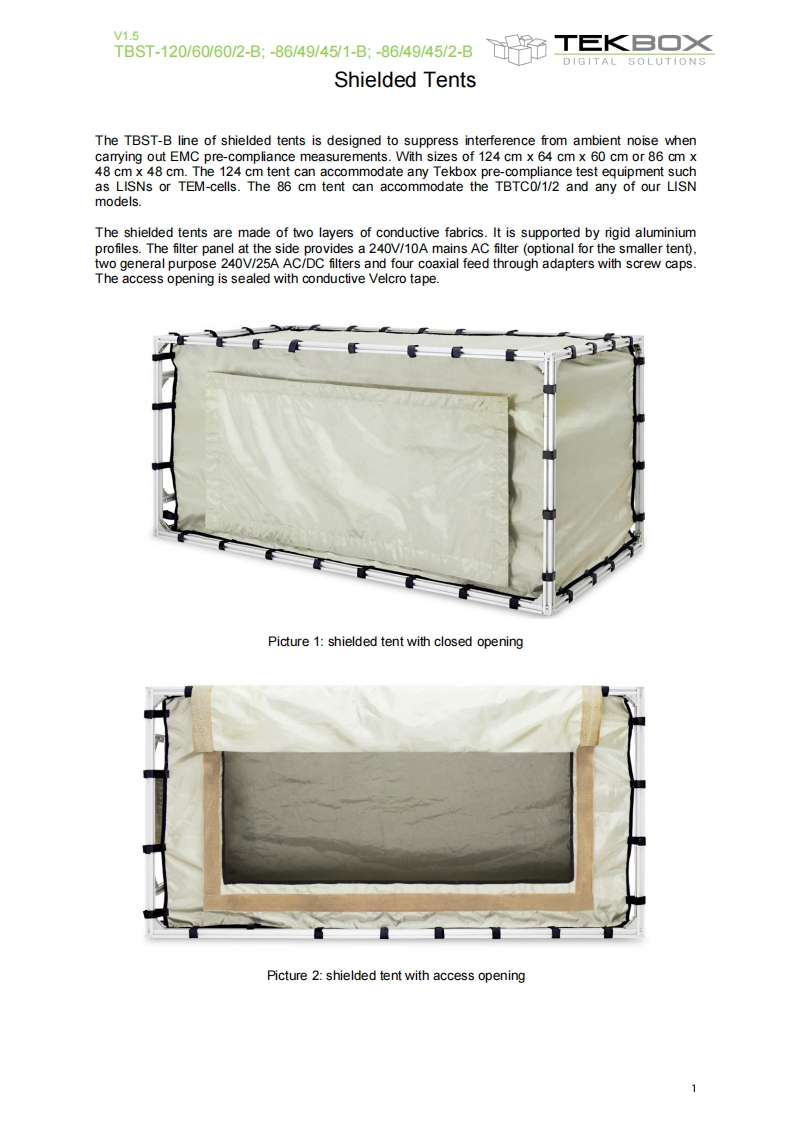

V1.5TBST-120/60/60/2-B:-86/49/45/1-B:-86/49/45/2-BTEKB▣XDIGITAL SOLUTIONSShielded TentsThe TBST-B line of shielded tents is designed to suppress interference from ambient noise whencarrying out EMC pre-compliance measurements.With sizes of 124 cm x 64 cm x 60 cm or 86 cm x48 cm x 48 cm.The 124 cm tent can accommodate any Tekbox pre-compliance test equipment suchas LISNs or TEM-cells.The 86 cm tent can accommodate the TBTCO/1/2 and any of our LISNmodels.The shielded tents are made of two layers of conductive fabrics.It is supported by rigid aluminiumprofiles.The filter panel at the side provides a 240V/10A mains AC filter (optional for the smaller tent),two general purpose 240V/25A AC/DC filters and four coaxial feed through adapters with screw caps.The access opening is sealed with conductive Velcro tape.Picture 1:shielded tent with closed openingPicture 2:shielded tent with access opening1
